- AEGIS Bearing Protection Ring
- For 1 1/8" Diameter shaft (1.125")
- NEMA 182T, 184T Frame
- Aluminum construction
- Includes mounting brackets
- Bolt on mount or Epoxy.
For easy AEGIS® Conductive Epoxy mounting:
EP2400 AEGIS® Conductive Epoxy (sold separately) our catalog # 14C789.

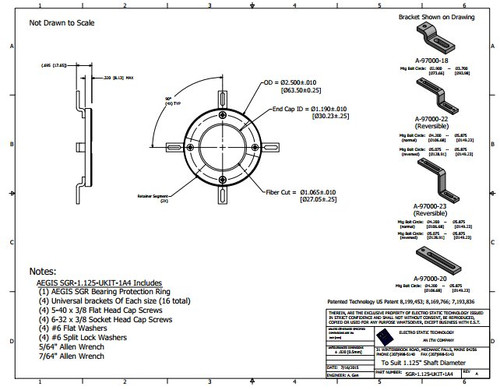

AEGIS UKIT Includes
(1) AEGIS SGR Bearing Protection Ring

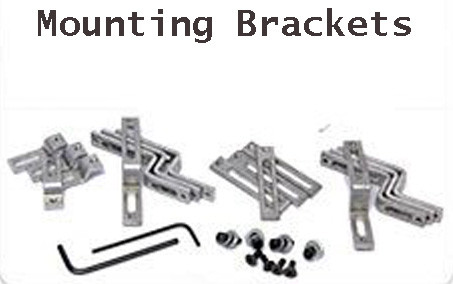

(4) Universal brackets Of Each size (16 total)
(4) 5-40 x 3/8 Flat Head Cap Screws
(4) 6-32 x 3/8 Socket Head Cap Screws
(4) #6 Flat Washers
(4) #6 Split Lock Washers
5/64" Allen Wrench
7/64" Allen Wrench.

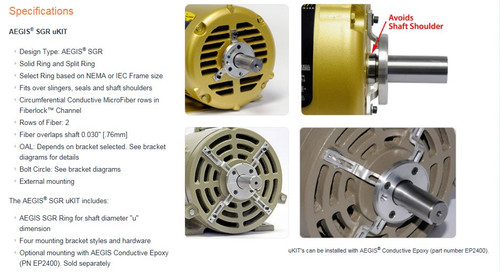

Help extend motor life by safely diverting harmful VFD-induced shaft voltages away from motor’s bearings to ground. Protect both motor bearings and the bearings in attached equipment.
