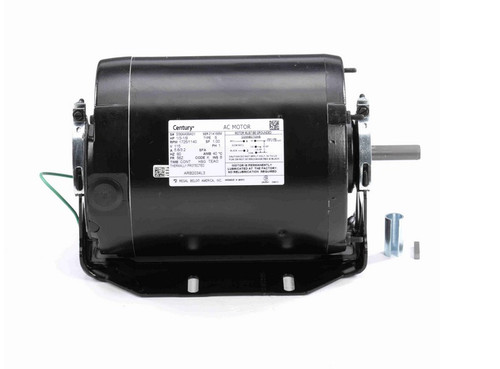

ARB2034L3 Century 1/3 hp (2 speed) 115V 1800/1200 RPM TEAO 56Z Frame Split Phase Resilient Base Motor

ARB2034L3 Century 1/3 hp (2 speed) 115V 1800/1200 RPM TEAO 56Z Frame Split Phase Resilient Base Motor

This Century 1/3 horsepower, two-speed motor is designed for blower applications in HVAC systems. It replaces standard split phase motors and is suitable for both vertical and horizontal shaft mounting.

Key Specifications

• Horsepower: 1/3 hp
• RPM: 1800/1200
• Voltage: 115V, 60 Hz
• Amperage: 5.6/3.2 amps
• Enclosure: Totally Enclosed Air-Over (TEAO)

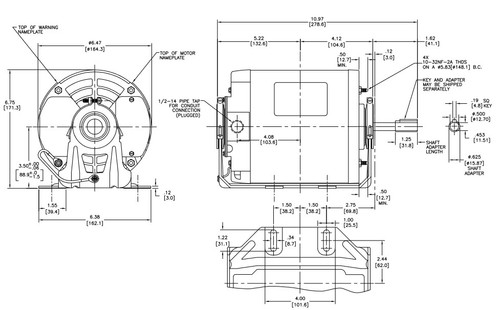

• Frame / Diameter: NEMA 56Z Frame
• Shaft Dimensions: 1/2" diameter x 1-5/8" length, includes 5/8" shaft bushing
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a resilient base for stable mounting and is designed for split phase operation without thermal protection. It includes a 5/8" shaft bushing for compatibility with various blower assemblies. The motor’s flat shaft and reversible rotation allow flexible installation options in HVAC blower systems.

Warranty

1 Year Manufacturer Warranty
