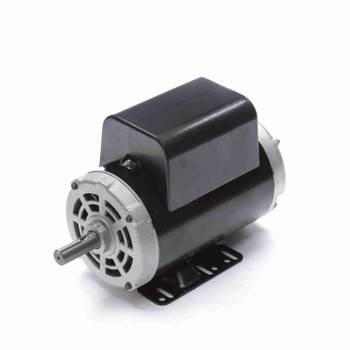

B179 Century Pressure Washer Motor 5 HP 3600 RPM R56HZ Frame

B179 Century Pressure Washer Motor 5 HP 3600 RPM R56HZ Frame

The Century B179 is a robust 5 HP pressure washer motor designed for high-pressure washers and similar applications. It serves as a reliable replacement motor featuring a capacitor start-capacitor run design for efficient and continuous operation.

Key Specifications

• Horsepower: 5 HP
• RPM: 3600
• Voltage: 208-230 Volts
• Amperage: 22.0 Amps
• Frame / Diameter: 56HZ Frame
• Shaft Dimensions: 0.875" x 2.31" keyed shaft
• Rotation: CWLE (Clockwise from Load End)
• Bearings: Double-Sealed Ball Bearings

Product Features & Fitment

This motor includes thermal protection and is built with rolled steel for durability and energy efficiency. It operates on single-phase power with a single-speed design and features a rigid mounting style. The overall length of the motor is 14.56 inches, making it suitable for direct replacement in compatible pressure washer systems.

Cross Reference

• 182735
