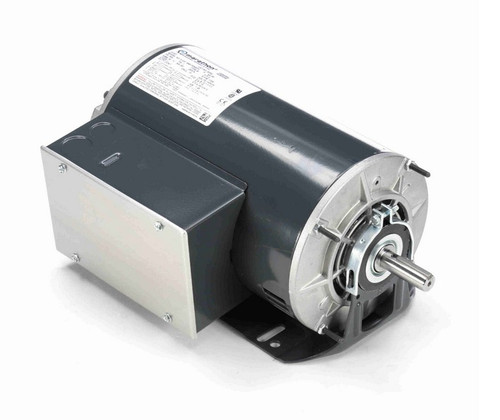

B352 Marathon 2 hp (1 speed) 115/208-230V 1800 RPM ODP 56H Frame Cap Start/Run Resilient Base Motor

B352 Marathon 2 hp (1 speed) 115/208-230V 1800 RPM ODP 56H Frame Cap Start/Run Resilient Base Motor

The Marathon B352 is a 2 horsepower, single-speed blower motor designed for air circulation applications in buildings. It replaces Leeson models 113608.00 and E113608.00 and features a capacitor start and run design for improved starting torque and operational efficiency.

Key Specifications

• Horsepower: 2 hp
• RPM: 1800
• Voltage: 115/208-230 V, 60 Hz
• Amperage: 21.0/11.3-10.5 A
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 56H Frame
• Shaft Dimensions: 1 7/8" length x 5/8" diameter, keyed
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a resilient base for stable mounting and includes thermal protection with automatic reset. The capacitor start provides higher starting torque, while the capacitor run improves efficiency during operation. The shaft orientation can be installed vertically or horizontally to suit various blower configurations. The motor is constructed with Class B insulation for durability in HVAC environments.

Cross Reference

• Leeson 113608.00, E113608.00

Warranty

1 Year Manufacturer Warranty
