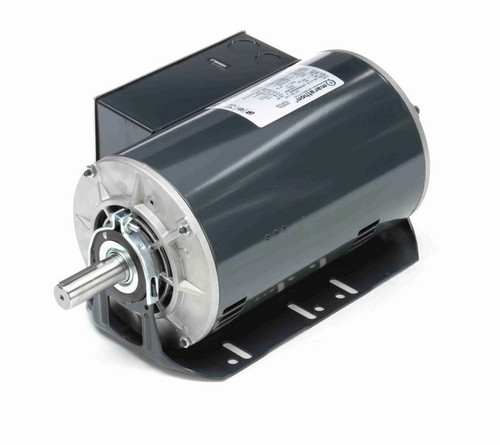

I147 Marathon 2 hp (1 speed) 115/208-230V 1800 RPM ODP 56H Frame Cap Start/Run Resilient Base Motor

I147 Marathon 2 hp (1 speed) 115/208-230V 1800 RPM ODP 56H Frame Cap Start/Run Resilient Base Motor

SKU:
I147
Weight:
50.00 LBS
Width:
9.00 (in)
Height:
11.00 (in)
Depth:
17.00 (in)
Shipping:
Free Shipping
ON SALE:
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage:
115/208/230V
Horsepower:
2 HP
RPM:
1800
Frame:
56H
Enclosure:
ODP
Hertz:
60 Hz
Amperage:
10.5 Amps
Bearings:
Ball Bearings
Speeds:
1-Speed
Insulation Class:
Class B
Was: $537.86
Now: $470.58
Adding to cart… The item has been added
  • 2 hp 1800 RPM, 21.0/11.3-10.5 amps, 115/208-230 Volts 60 Hz, Capacitor Start, Capacitor Run
  • NEMA 56H Frame Keyed Shaft 1 7/8" x 5/8" Diameter, 1 speed
  • Service Factor = 1.15, Thermal Protection = None
  • Resilient Base, Reversible, Ball Bearings, Class B insulation
  • 1 Year Manufacture Warranty

Blower motors are used to blow air inside of buildings. Capacitor Start motors have higher starting torque than others. Capacitor Run motors have better efficiency. Shaft may be vertical or horizontal. ODP = Open Drip Proof.145TBDR5345

!
