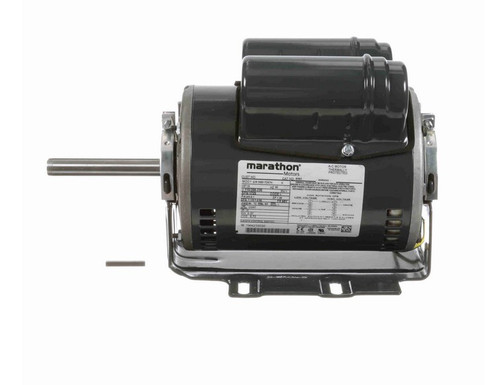

B353 Marathon 1/2 hp (1 speed) 115/208-230V 1800 RPM ODP 56Y Frame Cap Start Resilient Base Motor

B353 Marathon 1/2 hp (1 speed) 115/208-230V 1800 RPM ODP 56Y Frame Cap Start Resilient Base Motor

The B353 Marathon motor is a 1/2 horsepower, single-speed blower motor designed for HVAC and industrial air-moving applications. It serves as a reliable replacement for systems requiring a capacitor start and run motor with a resilient base mounting.

Key Specifications

• Horsepower: 1/2 hp
• RPM: 1800
• Voltage: 115/208-230 V
• Amperage: 6.2/3.1-3.0 A
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 56Y Frame
• Shaft Dimensions: 3 7/8" length x 5/8" diameter
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a capacitor start and capacitor run design for efficient operation and improved starting torque. It includes a keyed shaft for secure coupling and a resilient base for vibration isolation. The motor is equipped with automatic thermal protection and Class B insulation, ensuring durability and safe operation in various HVAC blower applications. The shaft orientation can be installed vertically or horizontally to suit different mounting requirements.

Warranty

1 Year Manufacturer Warranty
