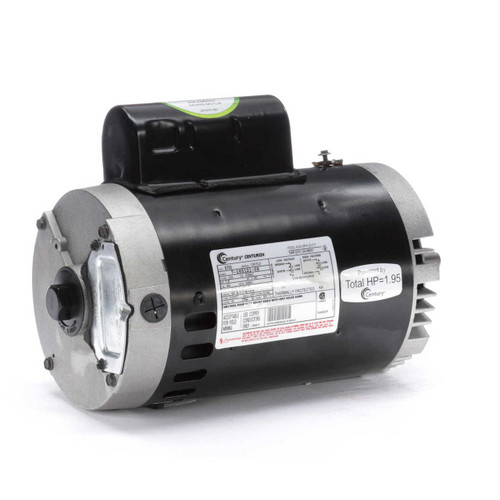

B795 Century 1.5 hp 3450 RPM 56C Frame 115/230V Switchless Swimming Pool Pump Motor Century # B795

B795 Century 1.5 hp 3450 RPM 56C Frame 115/230V Switchless Swimming Pool Pump Motor

This Century B795 motor is a high-service factor, energy-efficient replacement designed for swimming pool and jet pump applications. It is built to fit standard 56C frame pumps and provides reliable, switchless operation.

Key Specifications

• Horsepower: 1.5 HP
• RPM: 3450
• Voltage: 115/208-230V, 60 Hz
• Amperage: 15.6/7.8 amps
• Frame / Diameter: 56C Frame
• Shaft Dimensions: 5/8" diameter with keyway, non-treaded
• Rotation: Counterclockwise (CCW) facing the shaft
• Bearings: Sealed ball bearings

Product Features & Fitment

This motor features a C-Face mount with a round body and no base, designed for direct pump mounting. It includes four threaded bolt holes spaced 5 7/8" on center across the shaft for secure attachment. The motor is non-reversible and includes automatic overload protection. Wiring diagrams are provided on the motor nameplate for easy installation.

Please note that this motor does not comply with California Title 20 or New York NYSERDA energy efficiency regulations for single-speed pool pump motors. Verify local and state codes before purchasing to ensure compliance. Shipping restrictions apply to these states.

Warranty

• Mechanical Dimensions
• Pool Motor Manual
• Seal Reference Chart
