B969 Century 1.5 hp 2-Speed 56J Frame 115V; 2 Speed Swimming Pool Motor Century # B969

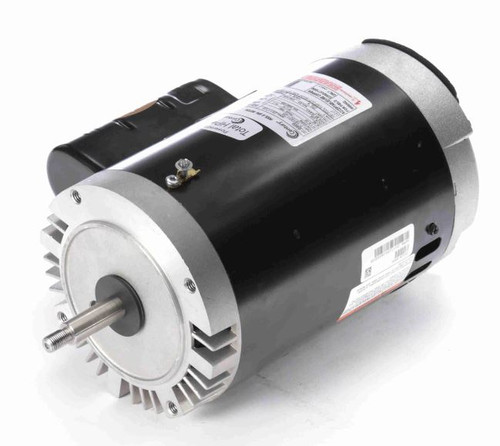

B969 Century 1.5 hp 2-Speed 56J Frame 115V Swimming Pool Motor
This Century 1.5 HP two-speed swimming pool motor is designed to replace existing 56J frame motors commonly found on inground pool pumps such as Hayward Super Pump, Maxflo, and Super II. It provides reliable, energy-efficient operation for residential pool pump applications.
Key Specifications
- Horsepower: 1.5 HP
- RPM: 3450 / 1725 (High/Low Speed)
- Voltage: 115 Volts
- Amperage: 14.6 / 4.4 Amps
- Enclosure: Open Drip Proof
- Frame / Diameter: 56J Frame
- Shaft Dimensions: 5/8" diameter threaded stainless steel shaft
- Rotation: Counterclockwise (CCW) facing the shaft
- Bearings: Ball Bearings
Product Features & Fitment
This motor features automatic overload protection and a high service factor of 1.10 for enhanced durability. It includes four threaded bolt holes on the face for mounting, spaced 5 7/8" on center across the shaft. The motor does not come with a power cord or a high/low toggle switch and is non-reversible. Wiring diagrams are provided on the motor nameplate for easy installation. This motor is suitable for standard 1081 pump duty applications and is equipped with sealed ball bearings and a stainless steel shaft for long-lasting performance.
Warranty
| Compliance Tab | /content/product_tabs/california.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 115V |
| Horsepower | 1-1/2 HP |
| RPM | 3450 |
| Phase | Single Phase |
| Frame | 56J |
| Hertz | 60 Hz |
| Amperage | 14.6/4.4 Amps |
| Bearings | Ball Bearings |
| Speeds | 2-Speed |
| Service Factor | 1.10 |
| Rotation | Counter-Clockwise |
