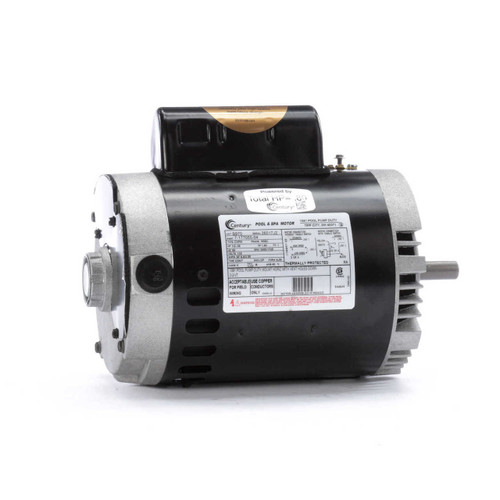

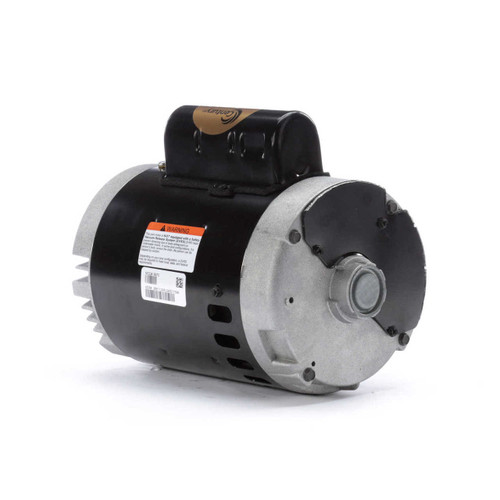

B970 Century 1/2 hp 2-Speed 56C Frame 115V Swimming Pool Motor
The B970 Century motor is a high-service-factor, energy-efficient two-speed pump motor designed for jet and pool pump applications. It serves as a reliable replacement motor compatible with various pool pump systems requiring a 1/2 HP, 115V motor.
Key Specifications
- Horsepower: 1/2 HP
- RPM: 3450/1725 (High/Low Speed)
- Voltage: 115V, 60 Hz
- Amperage: 8.8/3.55 Amps
- Frame / Diameter: 56C Frame
- Shaft Dimensions: 5/8" diameter with keyway, non-treaded
- Rotation: Counterclockwise (CCW) facing the shaft, non-reversible
- Bearings: Sealed ball bearings
Product Features & Fitment
This motor features a C-face mount with a round body and no base, facilitating direct pump mounting. It includes four threaded bolt holes on the face for pump attachment, spaced 5 7/8" on center across the shaft. The motor incorporates automatic overload protection and a service factor of 1.6. Wiring diagrams are provided on the motor nameplate for ease of installation.
Please note that due to regulatory requirements, this motor does not comply with California Title 20 and New York NYSERDA efficiency standards for replacement pump motors. Confirm local and state codes before installation to ensure compliance.
