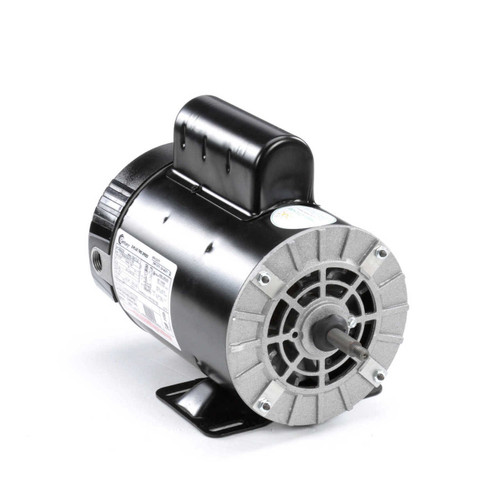

Thru-Bolt Replacement Spa Pump Electric Motor
- 2 HP 3450/1725 RPM, 8.5/2.8 amps, 230V 60hz.; 2-Speed
- Auto Overload Protection
- Non-Reversible -CCW Facing the Shaft
- Ball Bearings
- 48Y Frame; Thru-Bolt mount -Rigid Base
- One Year Manufacture Warranty
These are called Thru-Bolt mount motors as the pump mounts to the face of the motor with the motor thru bolts. 48Y frame motors thru bolt dimension is 5 1/8" on center measured across the shaft. Shaft is 1/2" diameter with threads on end. Motor has flat-rigid base welded to motor case. Wiring connection diagram on motor name plate.
US Electric Equivalent SPH20FL2S, Dayton 5PB56
This replacement motor is for use only with spa pumps, not for use for pool filtration.
Familiarize yourself with the laws and building codes in your state and local area in regards to replacing pump motors, in order to adhere to their regulations.
