C1479 Marathon 1 hp (2 speed) 208-230/190-220V 1800 RPM ODP 56H Frame Cap Start/Run Resilient Base Motor
C1479 Marathon 1 hp (2 speed) 208-230/190-220V 1800 RPM ODP 56H Frame Cap Start/Run Resilient Base Motor
C1479 Marathon 1 hp (2 speed) 208-230/190-220V 1800 RPM ODP 56H Frame Cap Start/Run Resilient Base Motor
C1479 Marathon 1 hp (2 speed) 208-230/190-220V 1800 RPM ODP 56H Frame Cap Start/Run Resilient Base Motor
C1479 Marathon 1 hp (2 speed) 208-230/190-220V 1800 RPM ODP 56H Frame Cap Start/Run Resilient Base Motor
C1479 Marathon 1 hp (2 speed) 208-230/190-220V 1800 RPM ODP 56H Frame Cap Start/Run Resilient Base Motor
C1479 Marathon 1 hp (2 speed) 208-230/190-220V 1800 RPM ODP 56H Frame Cap Start/Run Resilient Base Motor
C1479 Marathon 1 hp (2 speed) 208-230/190-220V 1800 RPM ODP 56H Frame Cap Start/Run Resilient Base Motor

Marathon

C1479 Marathon 1 hp (2 speed) 208-230/190-220V 1800 RPM ODP 56H Frame Cap Start/Run Resilient Base Motor

(No reviews) Write a Review
$955.54
$701.27
SKU MC1479
UPC 7.23E+11
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 208/230/190/220V
Horsepower 1 HP
RPM 1800
Frame 56H
Enclosure ODP
Hertz 60 Hz
Amperage 3.7 Amps
Bearings Ball Bearings
Speeds 2-Speed
Insulation Class Class B
Adding to cart… The item has been added
Description
  • 1 hp 1800/1200 RPM, 5.3-5.4/3.6-3.7 amps, 208-230/190-220 Volts 60 Hz, Capacitor Start, Capacitor Run

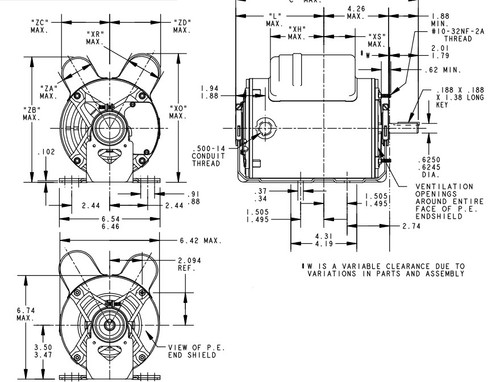

  • NEMA 56H Frame Keyed Shaft 1 7/8" x 5/8" Diameter, 2 speed
  • Service Factor = 1.0, Thermal Protection = Auto
  • Resilient Base, Reversible, Ball Bearings, Class B insulation
  • 1 Year Manufacture Warranty

Blower motors are used to blow air inside of buildings. Capacitor Start motors have higher starting torque than others. Capacitor Run motors have better efficiency. Shaft may be vertical or horizontal. ODP = Open Drip Proof. 5KCR48TN3084X




Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 208/230/190/220V
Horsepower 1 HP
RPM 1800
Frame 56H
Enclosure ODP
Hertz 60 Hz
Amperage 3.7 Amps
Bearings Ball Bearings
Speeds 2-Speed
Insulation Class Class B
!
