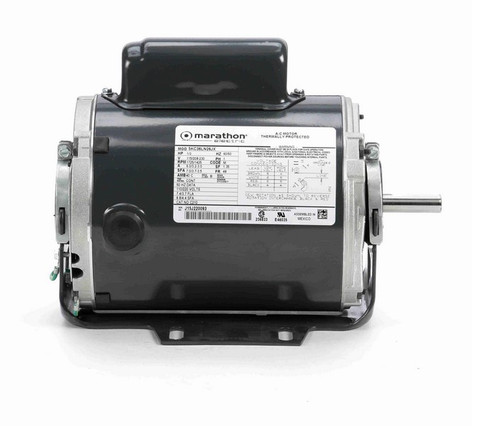

C210 Marathon 1/3 hp (1 speed) 115/208-230V 1800 RPM ODP 48 Frame Cap Start Resilient Base Motor

C210 Marathon 1/3 hp 115/208-230V 1800 RPM ODP Resilient Base Motor

This Marathon 1/3 horsepower motor is designed for blower applications, providing reliable air movement in residential or commercial HVAC systems. It replaces standard blower motors requiring a capacitor start and fits NEMA 48 frame mounts.

Key Specifications

• Horsepower: 1/3 hp
• RPM: 1800
• Voltage: 115/208-230V, 60 Hz
• Amperage: 6.0/3.2-3.0 amps
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 48 Frame
• Shaft Dimensions: 1 1/2" length x 1/2" diameter, flat shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a capacitor start for efficient startup and a resilient base for vibration reduction during operation. It includes thermal protection with automatic reset and a service factor of 1.35 for added durability. The motor is designed for flexible mounting with a reversible shaft orientation, suitable for both vertical and horizontal installations.

Warranty

1 Year Manufacturer Warranty
