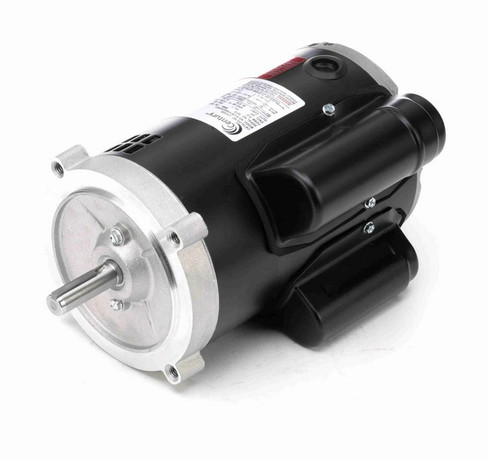

C315ES Century 1/2 hp 1800 RPM 56C Frame ODP (no base) 115/230V Motor

C315ES Century 1/2 hp 1800 RPM 56C Frame ODP (no base) 115/230V Motor

The C315ES is a general-purpose single-phase electric motor designed for applications requiring a C-face mount. It is suitable for replacing or installing in equipment such as pumps or gear heads that match its mounting and electrical specifications.

Key Specifications

• Horsepower: 1/2 hp
• RPM: 1800
• Voltage: 115/230V, 60 Hz
• Amperage: 4.6/2.3 A
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 56C Rolled Steel Frame
• Shaft Dimensions: 5/8" Diameter x 1 7/8" Length, keyed
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This capacitor start-induction run motor features a C-face mount with four threaded bolt holes spaced 5 7/8" on center across the shaft, allowing easy attachment of pumps or gear heads. The motor includes a keyed shaft and a rigid base for secure installation. Wiring information is provided on the motor nameplate for straightforward electrical connections.

Warranty

1 Year Manufacturer Warranty
