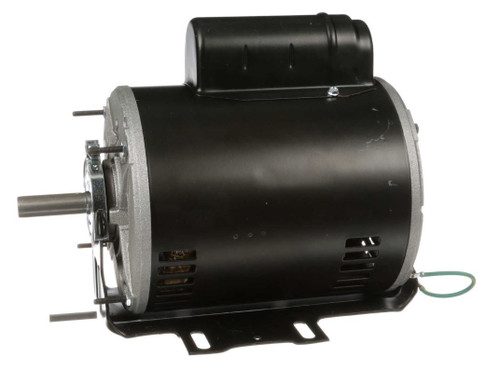

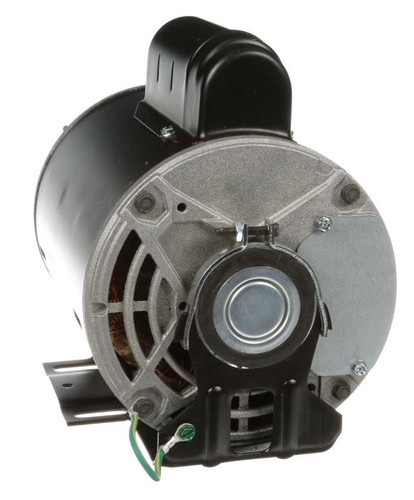

C426V2 Century 3/4 hp 1725 RPM 56 Frame 115/208-230V Belt Drive Cap Start Blower Motor

C426V2 Century 3/4 hp 1725 RPM 56 Frame 115/208-230V Belt Drive Cap Start Blower Motor

This 3/4 horsepower blower motor is designed for continuous duty applications and replaces Century/AO Smith models C426 and C426V1. It is ideal for HVAC and industrial blower systems requiring reliable, reversible rotation and easy installation.

Key Specifications

• Horsepower: 3/4 hp
• RPM: 1725
• Voltage: 115/208-230 V, 60 Hz
• Amperage: 10.4/5.2 A
• Enclosure: Open Drip Proof
• Frame / Diameter: 56 Frame
• Shaft Dimensions: 5/8" diameter x 1 7/8" length, 3.5" shaft height
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a resilient cradle base and extended thru bolts on the shaft end for secure mounting. It includes automatic overload protection and a capacitor start for efficient operation. The design allows for easy rotation change, making it adaptable to various blower configurations. Class B insulation ensures durability in demanding environments.

Cross Reference

• Century/AO Smith C426, C426V1

Warranty

1 Year Manufacturer Warranty
