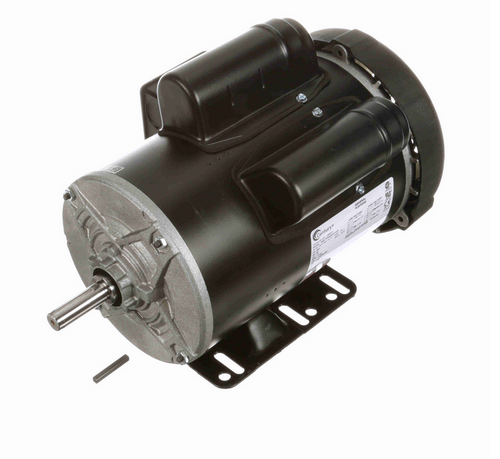

C686V1 Century 1-1/2 hp 1800 RPM 1-Phase 56 Frame TEFC (rigid base) 115/208-230V

C686V1 Century 1-1/2 hp 1800 RPM 1-Phase 56 Frame TEFC (rigid base) 115/208-230V

This Century general purpose motor is a 1-1/2 horsepower, single-phase unit designed for versatile industrial and HVAC applications. It replaces Century/AO Smith model C686 and features a totally enclosed fan-cooled (TEFC) design for reliable operation in various environments.

Key Specifications

• Horsepower: 1-1/2 hp
• RPM: 1800
• Voltage: 115/208-230 V, 60 Hz
• Amperage: 15.0/7.8-7.5 A
• Enclosure: Totally Enclosed Fan-Cooled (TEFC)
• Frame / Diameter: NEMA 56 frame
• Shaft Dimensions: 5/8" diameter x 1 7/8" length, keyed shaft
• Rotation: Reversible
• Bearings: Ball bearings

Product Features & Fitment

This motor features a rigid base mount for stable installation and includes a keyway on the shaft for secure coupling. It utilizes capacitor start and capacitor run technology with an automatic overload protection system. Wiring diagrams are provided on the motor nameplate to facilitate proper electrical connections.

Cross Reference

• Century/AO Smith C686

Warranty

1 Year Manufacturer Warranty
