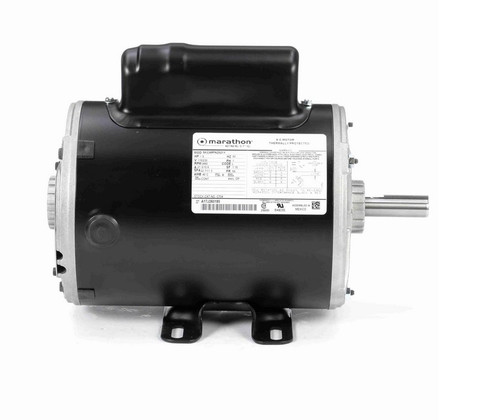

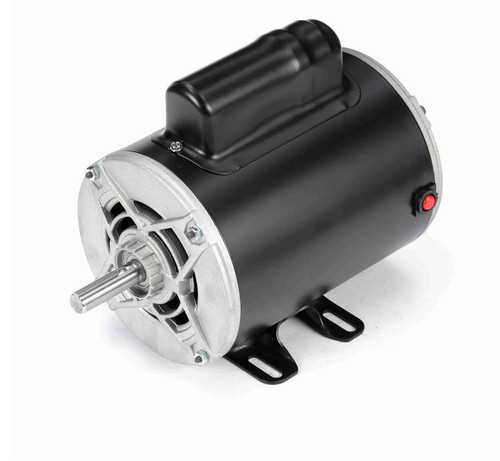

C704 Marathon 1 1/2 hp (1 speed) 115/230V 3600 RPM ODP 56 Frame Cap Start Pressure Washer Motor

SKU:
MC704
Weight:
31.00 LBS
Width:
10.00 (in)
Height:
11.00 (in)
Depth:
16.00 (in)
Shipping:
Free Shipping
ON SALE:
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage:
115/230V
Horsepower:
1/2 HP
RPM:
3600
Frame:
56
Enclosure:
ODP
Hertz:
60 Hz
Amperage:
21.3/10.6 Amps
Bearings:
Ball Bearings
Speeds:
1-Speed
Insulation Class:
Class B
Rotation:
Reversible
Mounting:
Rigid Base
Was: $150.00
Now: $95.00
Adding to cart… The item has been added

C704 Marathon 1 1/2 hp (1 speed) 115/230V 3600 RPM ODP 56 Frame Cap Start Pressure Washer Motor

This Marathon C704 motor is a 1 1/2 horsepower, single-speed motor designed for use in pressure washer air compressor units. It serves as a reliable replacement motor featuring a capacitor start and open drip proof enclosure for durability in demanding environments.

Key Specifications

  • Horsepower: 1 1/2 hp
  • RPM: 3600
  • Voltage: 115/230V
  • Amperage: 21.3/10.6 amps
  • Enclosure: Open Drip Proof (ODP)
  • Frame / Diameter: NEMA 56 Frame
  • Shaft Dimensions: 1 7/8" length x 5/8" diameter
  • Rotation: Reversible
  • Bearings: Ball Bearings

Product Features & Fitment

This motor includes a rigid base for stable mounting and manual thermal protection. It features a capacitor start design for efficient operation and a service factor of 1.15. The shaft orientation may be horizontal, making it suitable for various pressure washer configurations.

Warranty

1 Year Manufacturer Warranty
