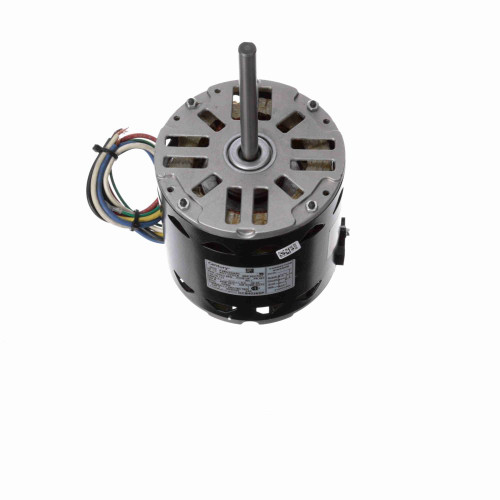

OCB4036SP Century Carrier Furnace Motor 1/3 hp, 1075 RPM, 5.7 amps, 115V Century # OCB4036SP

OCB4036SP Century Carrier Furnace Motor 1/3 hp, 1075 RPM, 5.7 amps, 115V

The OCB4036SP is a 1/3 horsepower furnace motor designed for Century and Carrier HVAC systems. It serves as a suggested replacement for multiple OEM part numbers, providing reliable performance in residential heating applications. Please note this motor is obsolete and no direct replacement is available.

Key Specifications

• Horsepower: 1/3 hp
• RPM: 1075
• Voltage: 115V
• Amperage: 5.7 amps
• Rotation: CCW Lead End
• Frame / Diameter: 5 5/8" motor diameter
• Shaft Dimensions: 1/2" x 4 5/8"
• Bearings: Sleeve Bearings

Product Features & Fitment

This 4-speed PSC motor features an internally mounted capacitor and comes with 12" leads for electrical connections. It does not include a plug; installation requires cutting off the old plug and using wire nuts for wiring. The motor case length measures 5 3/8", ensuring compatibility with standard furnace mounts.

Cross Reference

• 321P591, 321P951, F48H23A01, F48SL6MA44X1, 05-1252D, FDC1036, Dayton 48X984

Warranty

1 Year Manufacturer Warranty
