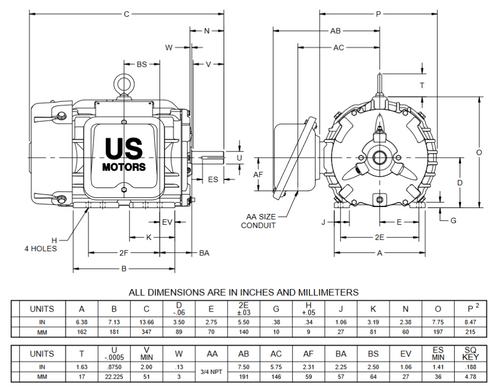

CD1P2E Nidec 1 hp 1800 RPM 143T Frame (Rigid Base) 230/460V TEFC 3-Phase World Electric Motor
CD1P2E Nidec 1 hp 1800 RPM 143T Frame (Rigid Base) 230/460V TEFC 3-Phase World Electric Motor
CD1P2E Nidec 1 hp 1800 RPM 143T Frame (Rigid Base) 230/460V TEFC 3-Phase World Electric Motor
CD1P2E Nidec 1 hp 1800 RPM 143T Frame (Rigid Base) 230/460V TEFC 3-Phase World Electric Motor

Nidec

CD1P2E Nidec 1 hp 1800 RPM 143T Frame (Rigid Base) 230/460V TEFC 3-Phase World Electric Motor

(No reviews) Write a Review
$470.35
$419.75
SKU CD1P2E
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 1 HP
RPM 1800
Phase Three Phase
Frame 143T
Enclosure TEFC
Hertz 50/60 Hz
Amperage 3.0/1.5 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Duty Inverter Duty
Adding to cart… The item has been added
Description
  • 1 hp 1800 RPM, 3.0/1.5 amps 230/460 Volts 50/60 Hz Three Phase Motor
  • NEMA 143T Cast Iron frame Keyed Shaft 7/8" Diameter x 2 1/8"
  • Service Factor: 1.15, Overload protection = None
  • Rigid Base Mount, Regreasable Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

Hostile duty three phase motor designed for chemically corrosive environments with either 50 or 60 Hz power. Inverter Duty. Self-certified Class 1, Division 2, Groups A, B, C, D. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled. GG27

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 1 HP
RPM 1800
Phase Three Phase
Frame 143T
Enclosure TEFC
Hertz 50/60 Hz
Amperage 3.0/1.5 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Duty Inverter Duty
!
