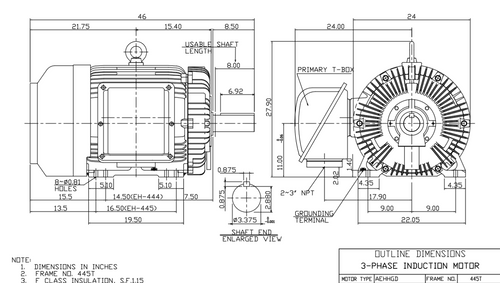

TECO WESTINGHOUSE, NEMA PREMIUM ELECTRIC MOTOR
- 100 hp 900 RPM, 260/130 amps 230/460 Volts 60 Hz Three Phase
- NEMA 445T Frame, 8 x 3 3/8" Dia. Keyed Shaft
- Cast Iron Frame, Totally Enclosed Fan Cooled (IP56)
- Service Factor: 1.15, Thermal Overload Protection: None
- Rigid Base, Reversible, Ball Bearings, Class F Insulation
- Suitable for Inverter Use per NEMA MG-1 Part 31.4.4.2
- Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
- Motors are U.L. Recognized, CSA Approved and CE Marked
- 1 Year Manufacture Warranty
For use in Severe Duty Crushers, Chippers, or any High-Torque Application Potentially Having Explosive Gases. Certified for Class 1, Division 2, Groups B,C,D; and Class 2, Division 2, Groups F and G.
