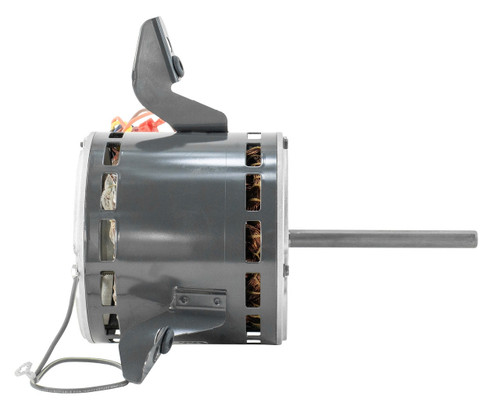

Century FM1056 Direct Replacement 1/2 HP 1075 RPM 3-Speed 208-230V 5-5/8" Dia. Furnace Motor

Century FM1056 Direct Replacement 1/2 HP 1075 RPM 3-Speed 208-230V 5-5/8" Dia. Furnace Motor

This Century FM1056 furnace blower motor is a direct replacement designed for residential and commercial HVAC systems. It is compatible with several OEM models, providing reliable performance for furnace blower applications.

Key Specifications

• Horsepower: 1/2 HP
• RPM: 1075
• Voltage: 208-230V, 60 Hz
• Amperage: 2.7 Amps
• Frame / Diameter: 5-5/8" Diameter
• Shaft Dimensions: 1/2" diameter x 6.0" length
• Rotation: Reversible
• Bearings: Ball Bearings
• Enclosure: Open Ventilated - Air Over

Product Features & Fitment

This motor features a torsion flex mount with bolt circle diameters of 9" and 10" for versatile installation options. It operates at three speeds (high, medium, and low) and includes 24" leads for easy wiring. The motor requires a separate 10 MFD 370V capacitor (not included) and is thermally protected with Class B insulation, suitable for ambient temperatures up to 40°C.

Cross Reference

• the following models
• Century/AO Smith FM1056, F48N85A01
• Packard 43788
• MARS 10688
• Dayton 4MB56

Warranty

1 Year Manufacturer Warranty
