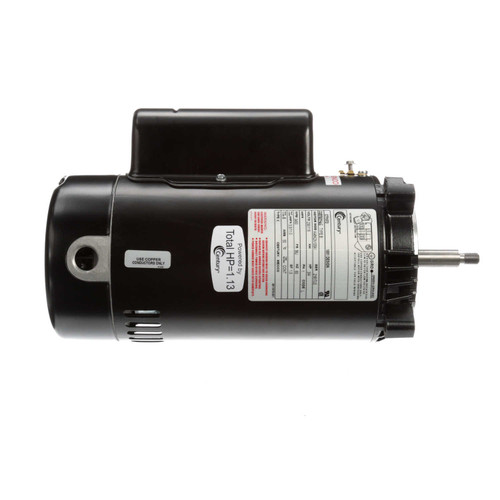

CT1072 Century 3/4 hp 3450 RPM 56J Frame 115/230V Energy Efficient Swimming Pool Motor

CT1072 Century 3/4 hp 3450 RPM 56J Frame 115/230V Energy Efficient Swimming Pool Motor

This single-speed, energy-efficient motor is designed for swimming pool pumps, commonly replacing motors on inground pool pumps such as Hayward Super Pump, Maxflo, and Super II. It features a 56J frame and is suitable for applications requiring a reliable and durable pump motor.

Key Specifications

• Horsepower: 3/4 HP
• RPM: 3450
• Voltage: 115/230V
• Amperage: 11.0/5.5 amps
• Frame / Diameter: 56-J Frame
• Shaft Dimensions: 5/8" diameter threaded stainless steel shaft
• Rotation: Non-Reversible, CCW rotation facing the shaft
• Bearings: Sealed ball bearings

Product Features & Fitment

The motor includes automatic overload protection with a service factor of 1.50 and features a C-face mount with a round body and no base. It has four threaded bolt holes on the face for mounting the pump, spaced 5 7/8" on center across the shaft. The motor is equipped with a wiring diagram on the nameplate for easy installation. This motor is a standard 1081 pump duty motor with a stainless steel shaft, ensuring durability and long service life.
