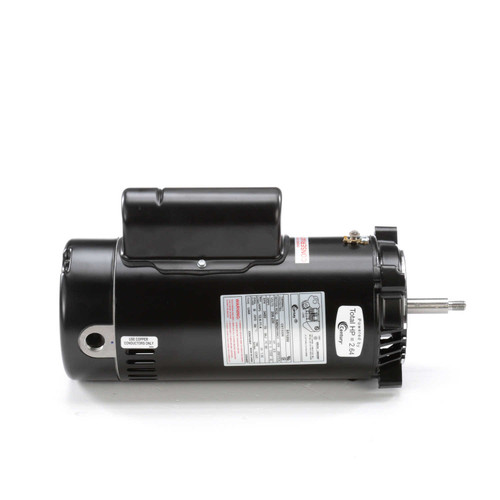

ST1202 Century 2 hp 3450 RPM 56J Frame 208-230V Energy Efficient Swimming Pool Motor

ST1202 Century 2 hp 3450 RPM 56J Frame 208-230V Energy Efficient Swimming Pool Motor

The ST1202 is a single-speed, energy-efficient 2 HP motor designed for use with inground swimming pool pumps. It is a direct replacement for motors on popular pumps such as Hayward Super Pump, Maxflo, and Super II models requiring a 56J frame.

Key Specifications

• Horsepower: 2 HP
• RPM: 3450
• Voltage: 208-230V, 60 Hz
• Amperage: 11.2 amps
• Frame / Diameter: 56J Frame
• Shaft Dimensions: 5/8" diameter threaded stainless steel shaft
• Rotation: Counterclockwise (CCW) facing the shaft, non-reversible
• Bearings: Sealed ball bearings

Product Features & Fitment

This motor features automatic overload protection with a service factor of 1.30 and is capacitor start/capacitor run. It has a C-Face mount with a round body and no base, including four threaded bolt holes on the face spaced 5 7/8" on center across the shaft for secure pump mounting. The motor includes a wiring diagram on the nameplate for easy installation. It is commonly used as a standard 1081 pump duty motor with a stainless steel shaft for durability.
