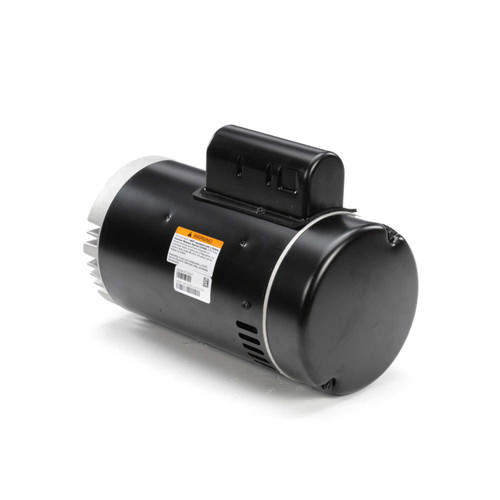

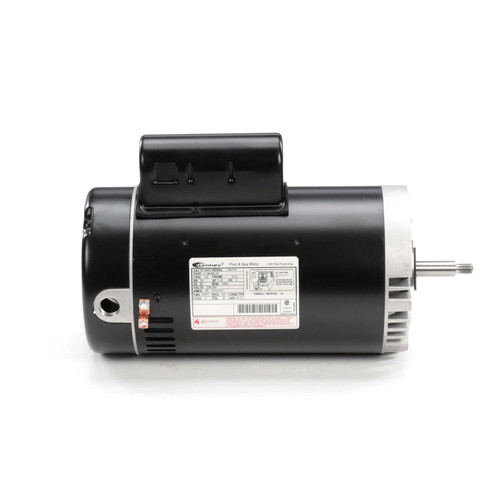

ST1302V1 Century 3 hp 3450 RPM 56J Frame 208-230V Energy Efficient Swimming Pool Motor
The ST1302V1 is a single-speed, energy-efficient 3 HP motor designed for swimming pool pumps. It replaces the Century ST1302 and US Electric EST1302 models and is commonly used with inground pool pumps such as Hayward Super Pump, Maxflo, and Super II.
Key Specifications
- Horsepower: 3 HP
- RPM: 3450
- Voltage: 208-230V, 60 Hz
- Amperage: 14.4 amps
- Frame / Diameter: 56J Frame
- Shaft Dimensions: 5/8" diameter threaded stainless steel shaft
- Rotation: Counterclockwise (CCW) facing the shaft
- Bearings: Sealed ball bearings
Product Features & Fitment
This motor features a capacitor start and capacitor run design with automatic overload protection and a service factor of 1.15. It has a C-face mount with a round body and no base, including four threaded bolt holes spaced 5 7/8" on center for secure pump mounting. The motor includes a wiring diagram on the nameplate for easy installation and is suitable for standard 1081 pump duty applications. Note that shipping restrictions apply in certain states due to energy efficiency regulations.
Cross Reference
- Century ST1302. US Electric Equivalent EST1302
- Effective July 19, 2021 the US Dept of Energy regulations on single speed, two-speed and booster pumps go into effect
