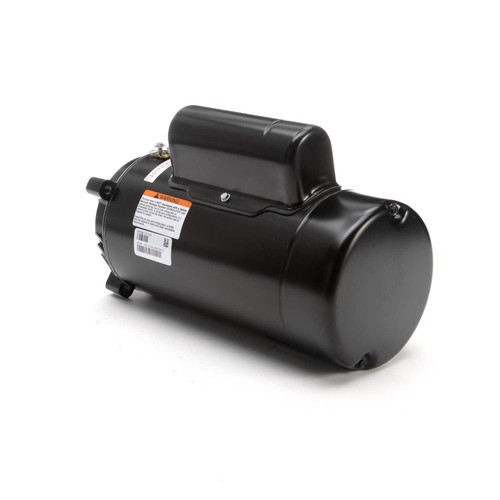

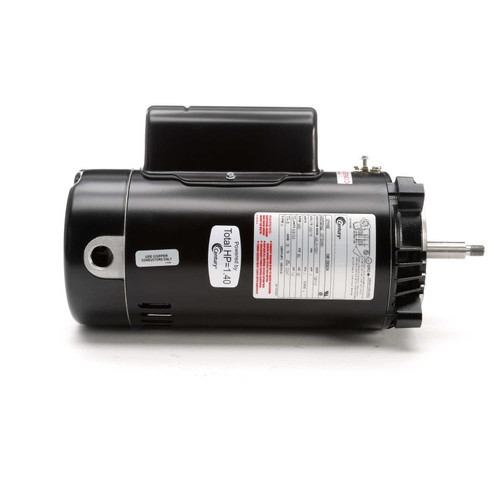

CT1102 Century 1 hp 3450 RPM 56J Frame 115/230V Energy Efficient Swimming Pool Motor

CT1102 Century 1 hp 3450 RPM 56J Frame 115/230V Energy Efficient Swimming Pool Motor

The CT1102 is a single-speed, energy-efficient 1 HP motor designed for swimming pool pumps. It replaces motors commonly found on inground pool pumps such as Hayward Super Pump, Maxflo, and Super II, featuring a 56J frame and capacitor start/run configuration.

Key Specifications

• Horsepower: 1 HP
• RPM: 3450
• Voltage: 115/230V, 60 Hz
• Amperage: 6.8/13.6 amps
• Frame / Diameter: 56J Frame
• Shaft Dimensions: 5/8" diameter threaded stainless steel shaft
• Rotation: Counterclockwise (CCW) facing the shaft, non-reversible
• Bearings: Sealed ball bearings

Product Features & Fitment

This motor features automatic overload protection with a service factor of 1.40 and a C-face mount with a round body and no base. It includes four threaded bolt holes on the face for pump mounting, spaced 5 7/8" on center across the shaft. The motor is designed for capacitor start and capacitor run operation and is compatible with standard 1081 pump duty applications. Wiring diagrams are provided on the motor nameplate for ease of installation.
