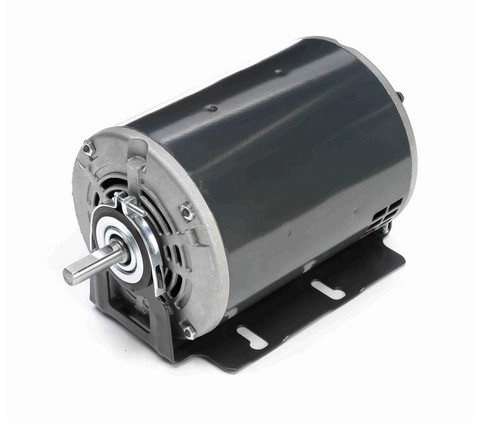

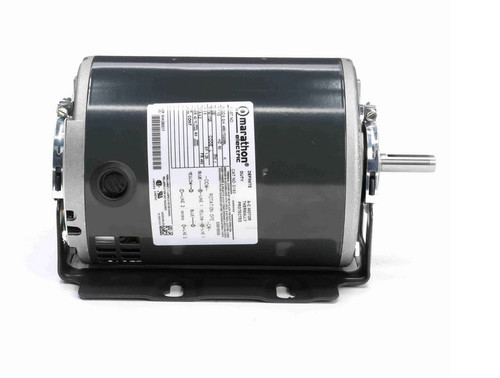

D163 Marathon 1/2 hp (1 speed) 230V 1800 RPM ODP 48Y Frame Resilient Base Blower Motor

D163 Marathon 1/2 hp (1 speed) 230V 1800 RPM ODP 48Y Frame Resilient Base Blower Motor

This Marathon blower motor is a reliable replacement for HVAC and industrial applications requiring a 1/2 horsepower motor. Designed to efficiently circulate air inside buildings, it features a single-speed operation suitable for various blower systems.

Key Specifications

• Horsepower: 1/2 hp
• RPM: 1800
• Voltage: 230V, 60 Hz
• Amperage: 3.6 amps
• Enclosure: Open Drip Proof (ODP)

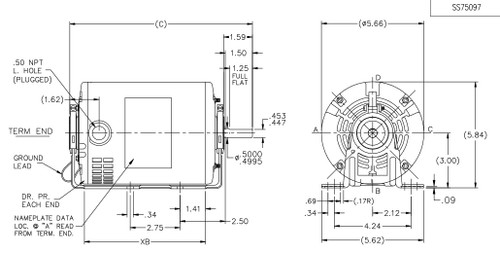

• Frame / Diameter: NEMA 48Y Frame
• Shaft Dimensions: 1 1/2" length x 1/2" diameter, flat shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

The motor features a resilient base for stable mounting and is designed for reversible shaft rotation to accommodate different blower configurations. It includes thermal auto-protection and a service factor of 1.25, ensuring durability and reliable performance in demanding environments. The shaft orientation can be installed vertically or horizontally to suit installation requirements.

Warranty

1 Year Manufacturer Warranty
