- 40 hp 900 RPM, 103/52 amps 230/460 Volts 60 Hz Three Phase Motor

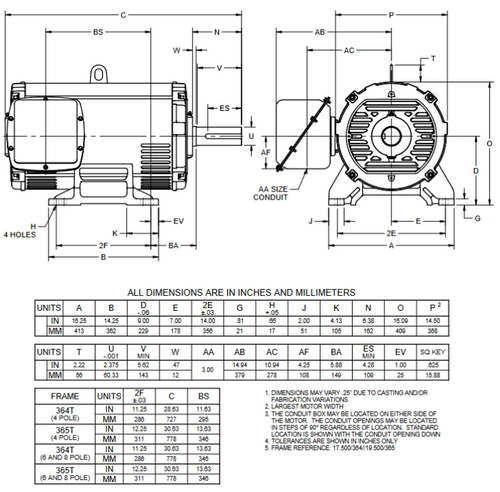

- NEMA 365T Cast Iron Frame, Keyed Shaft 2 3/8" Diameter x 5 7/8"
- Service Factor: 1.15, Overload protection = None
- Rigid Base Mount, Ball Bearings, Class F Insulation, Reversible
- 1 Year Manufacture Warranty
General purpose motor designed for use with pumps, fans, and compressors where contaminants are minimal. Wiring diagram on motor name plate. ODP = Open Drip Proof. HE12
