D1P4E Nidec 1 hp 900 RPM 182T Frame (Rigid Base) 230/460V ODP 3-Phase Electric Motor
(No reviews)
Write a Review
Write a Review
Nidec
D1P4E Nidec 1 hp 900 RPM 182T Frame (Rigid Base) 230/460V ODP 3-Phase Electric Motor
$642.85
$573.97
SKU
D1P4E
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
LIMITED TIME DISCOUNT
Voltage
230/460V
Horsepower
1 HP
RPM
900
Phase
Three Phase
Frame
182T
Enclosure
ODP
Hertz
60 Hz
Amperage
4.5/2.2 Amps
Bearings
Ball Bearings
Service Factor
1.15
Insulation Class
Class F
Mounting
Rigid Base
D1P4E Nidec 1 hp 900 RPM 182T Frame (Rigid Base) 230/460V ODP 3-Phase Electric Motor
This general-purpose electric motor is designed for reliable operation in pumps, fans, and compressors where minimal contaminants are present. It is a direct replacement motor featuring a rigid base mount and suitable for various industrial applications requiring a 1 hp, 3-phase motor.
Key Specifications
- Horsepower: 1 hp
- RPM: 900
- Voltage: 230/460 V
- Amperage: 4.5/2.2 A
- Enclosure: Open Drip Proof (ODP)
- Frame / Diameter: NEMA 182T Rolled Steel Frame

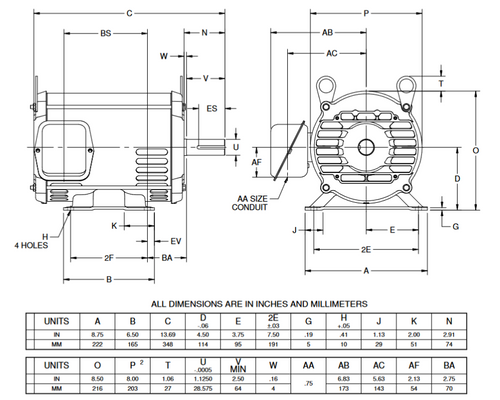

- Shaft Dimensions: 1 1/8" Diameter x 2 3/4" Length
- Rotation: Reversible
- Bearings: Ball Bearings
Product Features & Fitment
The motor features a rigid base mount for stable installation and includes a keyed shaft for secure coupling. It is constructed with Class F insulation and designed for three-phase 60 Hz operation. Wiring diagrams are provided on the motor nameplate to assist with proper electrical connections.
Warranty
1 Year Manufacturer Warranty
1 Year Manufacturer Warranty
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | LIMITED TIME DISCOUNT |
| Voltage | 230/460V |
| Horsepower | 1 HP |
| RPM | 900 |
| Phase | Three Phase |
| Frame | 182T |
| Enclosure | ODP |
| Hertz | 60 Hz |
| Amperage | 4.5/2.2 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.15 |
| Insulation Class | Class F |
| Mounting | Rigid Base |
Related Products
sale
Add to Cart
The item has been added

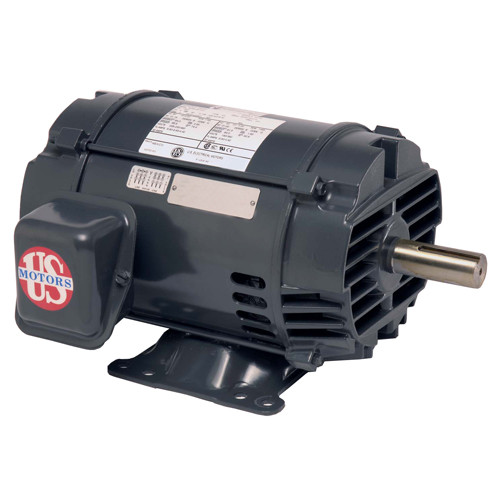

D3PA2D Nidec 3 hp 1800 RPM 182T Frame (Rigid Base) 208-230/460V ODP 3-Phase Electric Motor
