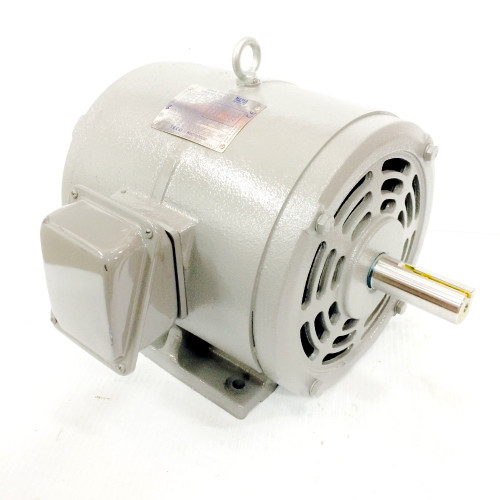

DHP0752G TECO-Westinghouse 75 HP 3600 RPM 364TS 230/460V ODP Cast Iron SGR 3-Phase Motor

SKU:
DHP0752G
Weight:
704.00 LBS
Shipping:
Calculated at Checkout
$4,114.52
Adding to cart… The item has been added

TECO WESTINGHOUSE, NEMA PREMIUM ELECTRIC MOTOR

  • 75 hp 3600 RPM, 165/82.5 amps 230/460 Volts 60 Hz. Three Phase
  • NEMA 364TS Frame, 3 3/4 x 1 7/8" Dia. Keyed Shaft
  • Cast Iron Frame, Open Drip Proof
  • Service Factor: 1.15, Thermal Overload Protection: None
  • Rigid Base, Reversible, Ball Bearings, Class F Insulation
  • Suitable for Inverter Use per NEMA MG-1 Part 31.4.4.2
  • Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
  • Motors are U.L. Recognized, CSA Approved and CE Marked
  • 1 Year Manufacture Warranty

General purpose SGR motor for use on pumps, fans, and compressors. The SGR bearing protection ring resists bearing damage by diverting stray electric currents to ground.
