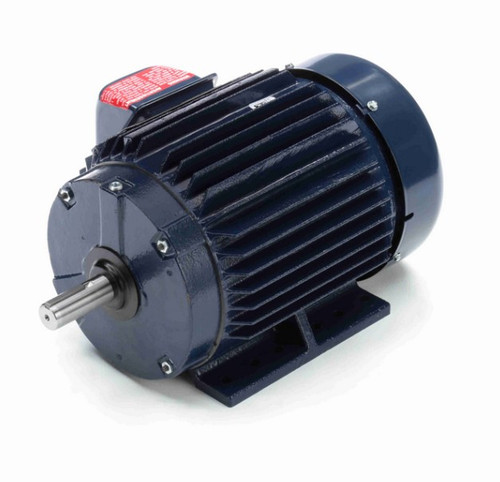

E2207-P Marathon 2 hp 230/460V 1800 RPM 3-Phase 145T Frame TEFC (rigid base) Motor

SKU:
E2207-P
Weight:
72.00 LBS
Shipping:
Calculated at Checkout
STATUS:
DISCONTINUED
$0.00

CURRENTLY OUT OF STOCK

Motor Discontinued

  • 2 hp 1800 RPM, 6.0/3.0 amps 230/460 Volts 60hz. Three Phase
  • NEMA 145T Cast Iron frame, Keyed Shaft 7/8" Diameter x 2 1/4"
  • Service Factor: 1.15, Thermal Overload Protection: None
  • Rigid Base, Reversible, Ball Bearings, Class F Insulation
  • 1 Year Manufacture Warranty

This is a general purpose three phase motor with a rigid base mount. Shaft has keyway. General purpose motors are for use in situations not having special requirements. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled 145TTFN16045
