Marathon

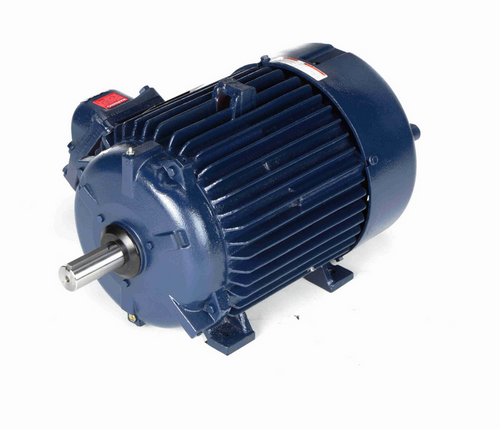

E506A-P Marathon 20 hp 1800 RPM 3-Phase 256T Frame TEFC (rigid base) 230/460V Marathon Motor
(No reviews)
Write a Review
Write a Review
Marathon
E506A-P Marathon 20 hp 1800 RPM 3-Phase 256T Frame TEFC (rigid base) 230/460V Marathon Motor
$3,356.51
$2,853.15
SKU
ME506A-P
UPC
7.23E+11
Availability
LIMITED STOCK
Shipping
Calculated at Checkout
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
LIMITED TIME DISCOUNT
Voltage
230/460V
Horsepower
20 HP
RPM
1800
Phase
Three Phase
Frame
256T
Enclosure
TEFC
Hertz
60 Hz
Amperage
48.5/24.2 Amps
Bearings
Ball Bearings
Service Factor
1.0
Insulation Class
Class F
Mounting
Rigid Base
- 20 hp 1800 RPM, 48.5/24.2 amps 230/460 Volts 60 Hz. 3-Phase
- NEMA 254T cast iron frame, Keyed Shaft 1 5/8" Diameter x 4"
- Service Factor: 1.0, Overload protection = Thermostat
- Rigid Base, Reversible, Ball Bearings, Class F Insulation
- 1 Year Manufacture Warranty, Bearing Current Protection
Explosion-Proof three phase cast iron electric motor. EXP PROOF CL I GR C&D CL II GR F&G T3B. Shaft has keyway. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled.
Replaces Marathon 256TTGN16552, E506-P
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | LIMITED TIME DISCOUNT |
| Voltage | 230/460V |
| Horsepower | 20 HP |
| RPM | 1800 |
| Phase | Three Phase |
| Frame | 256T |
| Enclosure | TEFC |
| Hertz | 60 Hz |
| Amperage | 48.5/24.2 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.0 |
| Insulation Class | Class F |
| Mounting | Rigid Base |
