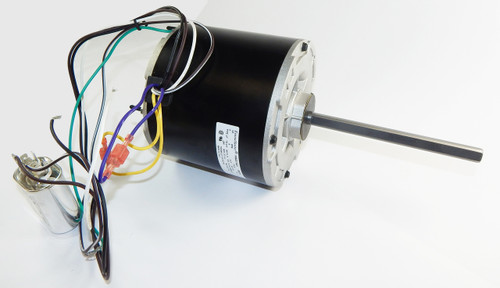

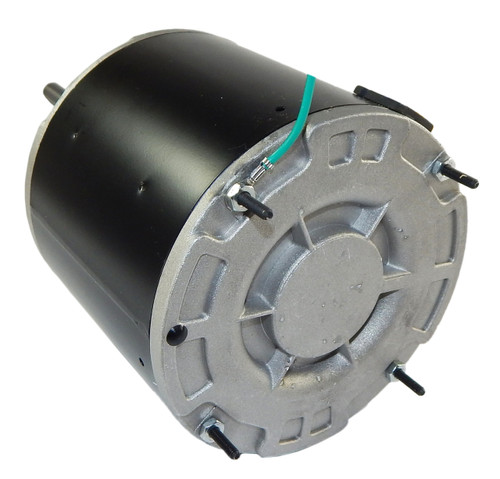

EM3404F | 1/4 hp 825 RPM 48 Frame 208-230V 5 5/8" Diameter Condenser Motor

EM3404F | 1/4 hp 825 RPM 48 Frame 208-230V 5 5/8" Diameter Condenser Motor

The EM3404F is a high-quality replacement condenser motor designed for various residential air conditioning units. It serves as a direct replacement for many popular A/C brands, offering reliable performance in HVAC applications.

Key Specifications

• Horsepower: 1/4 hp
• RPM: 825
• Voltage: 208-230V
• Amperage: 1.4 amps
• Enclosure: Totally enclosed
• Frame / Diameter: 48 Frame / 5 5/8" diameter
• Shaft Dimensions: 1/2" x 6"
• Rotation: Reversible
• Bearings: Ball bearing

Product Features & Fitment

This motor features automatic overload protection and is rated for continuous duty in ambient temperatures up to 70°C. It requires a 5 MFD 370V capacitor (not included) and uses 2-prong capacitor connections. The motor includes 36" wire leads for easy installation. Mounting options include belly band or stud mount, with motor thru bolts designed for easy removal and reversal to accommodate top mounting configurations. The motor’s service factor is 1.0, and it incorporates Class F insulation for durability in residential HVAC applications.

Cross Reference

• for
• Century FE1028F, FSE1028SF
• Fasco D934

Warranty

1 Year Manufacturer Warranty
