EP0302 TECO Westinghouse 30 hp 3600 RPM 286TS Cast Iron 230/460V TEFC Severe Duty 3-Phase Motor

EP0302 TECO Westinghouse 30 hp 3600 RPM 286TS Cast Iron 230/460V TEFC Severe Duty 3-Phase Motor

The EP0302 is a robust 30 horsepower, 3600 RPM three-phase electric motor designed for severe duty industrial applications. It is ideal for replacing or upgrading motors in crushers, compressors, mixers, conveyors, and similar heavy-duty equipment.

Key Specifications

• Horsepower: 30 hp
• RPM: 3600
• Voltage: 230/460 V
• Amperage: 66.4/33.2 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC), IP54

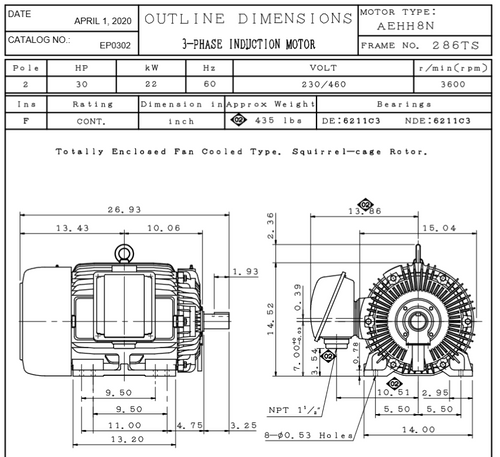

• Frame / Diameter: NEMA 286TS Frame
• Shaft Dimensions: 3 1/4" length x 1 5/8" diameter, keyed
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a cast iron frame with a rigid base for stable mounting and long-lasting durability. It is designed with Class F insulation and is suitable for inverter duty, supporting variable torque speed ranges of 20:1 and constant torque ranges of 10:1 per NEMA MG-1 standards. The motor is reversible and does not include built-in thermal overload protection, so external protection is recommended.

Warranty

1 Year Manufacturer Warranty
