EP7/54C TECO Westinghouse 7 1/2 hp 1800 RPM 213TC Cast Iron 230/460V TEFC Severe Duty 3-Phase Motor

SKU:
EP7/54C
Weight:
175.00 LBS
Shipping:
Calculated at Checkout
$805.79
Adding to cart… The item has been added

TECO WESTINGHOUSE, NEMA PREMIUM ELECTRIC MOTOR

  • 7 1/2 hp 1800 RPM, 17.70/8.85 amps 230/460 Volts 60Hz. Three Phase

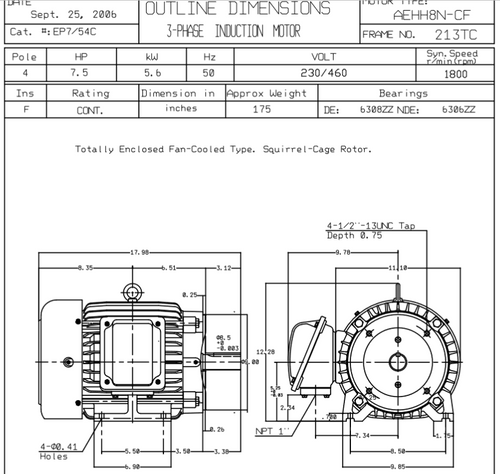

  • NEMA 213TC Frame, 3 3/8 x 1 3/8" Dia. Keyed Shaft
  • Cast Iron Frame, Totally Enclosed Fan Cooled (IP54)
  • Service Factor: 1.15, Thermal Overload Protection: None
  • Rigid Base, Reversible, Ball Bearings, Class F Insulation
  • Suitable for Inverter Use per NEMA MG-1 Part 31.4.4.2
  • Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
  • Motors are U.L. Recognized, CSA Approved and CE Marked
  • 1 Year Manufacture Warranty

Applications: Crushers, Compressors, Mixers, Conveyors, Any Severe Duty Application
