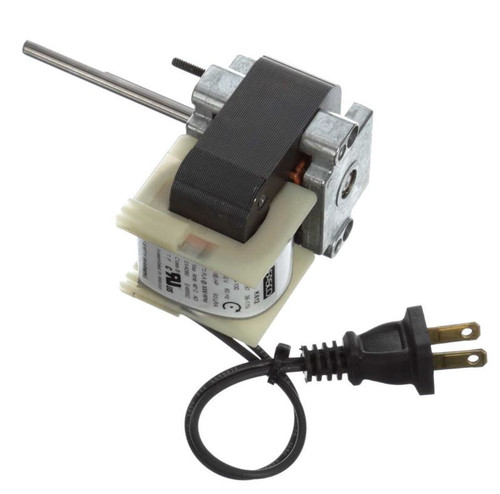

Fasco K612 Motor | Fasco C-Frame Vent Fan Motor .73 amps 3000 RPM 120V (CW rotation)

Fasco K612 Motor | Fasco C-Frame Vent Fan Motor .73 amps 3000 RPM 120V (CW rotation)

The Fasco K612 is a C-frame vent fan motor designed for use in various fan applications including bath fans, range hood fans, and humidifier/dehumidifiers. It serves as a direct replacement for models such as UPPCO 99080145 and BROAN 162, ensuring reliable performance in residential and commercial ventilation systems.

Key Specifications

• RPM: 3000
• Voltage: 120V
• Amperage: 0.73 amps
• Frame / Diameter: C-Frame, Iron Stack Size 1.0"
• Shaft Dimensions: 0.25" diameter x 2.70" length with 1 3/16" flat
• Rotation: Clockwise (facing shaft side)

Product Features & Fitment

This motor features a continuous duty rating with Class B insulation and includes a standard 2-prong plug for easy connection. It mounts using two studs spaced 1 7/8" on center, compatible with various fan housings. The C-frame design allows straightforward installation in existing vent fan assemblies.

Cross Reference

• UPPCO 99080145, BROAN 162, 7002-2281, 7102-1268, 71581187, 7158-1187
• Suggested replacement for Nutone Models 8010N, 8070N, 8070SA, 8070WH, C-35107, C35107, 35107

Warranty

• Fasco Catalog Page
