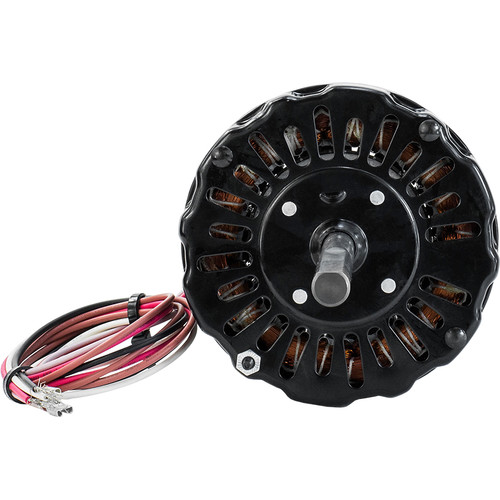

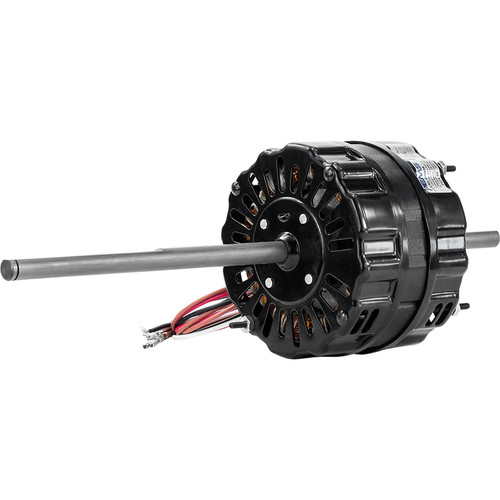

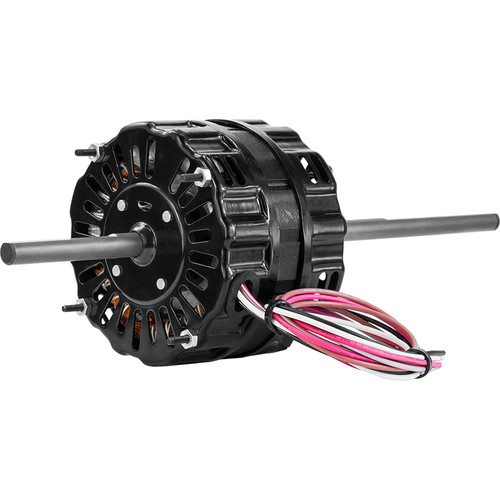

Fasco D1092 RV Aftermarket Motor Direct OEM Replacement 7184-0156, 7184-0432, 1468-3069

Fasco D1092 RV Aftermarket Motor Direct OEM Replacement 7184-0156, 7184-0432, 1468-3069

This aftermarket motor is a direct OEM replacement for the Fasco D1092 electric motor, designed to fit Coleman Mach and select Coleman AC unit models. It provides reliable two-speed operation for 6000 and 8000 series air conditioning units.

Key Specifications

• Horsepower: 1/3 HP
• RPM: 1675/1080 (2 speed)
• Voltage: 115 Volts
• Amperage: 3.8 Amps
• Shaft Dimensions: Double shaft 7 15/16" x 1/2" x 3 1/2"
• Rotation: CWLE (clockwise from the short shaft end)
• Bearings: Sleeve bearings

Product Features & Fitment

This motor is made from high-quality materials and tested to meet OEM standards, ensuring premium value and performance. It features a round body without a bracket and a mounting bolt pattern of 4-1/2". Installation is straightforward as it is designed to fit top brand Fasco motors exactly. A 7.5 MFD 2-prong capacitor is required for operation but is not included. Compatible with Coleman Mach fan motor part numbers 1468-306, 1468-3068, 1468A3068, 1468-3069, 1468A3069, and 1468-3109, as well as Coleman models 48004, 48014, 48064, 48203, 48204, 48213, 48253, 48254, 48263, 48264, 8332, 8333, 8335, 8433, 8534, 8535, 8632, and 8633.

Cross Reference

• Part No. 7184-0156, 7184-0432, Y6L457D01L, 7855MVA-A11U
• Replaces Coleman Mach Fan Motor Part No. 1468-306, 1468-3068, 1468A3068, 1468-3069, 1468A3069, 1468-3109
• Fits 6000 & 8000 Series AC Units
• Coleman Models: 48004, 48014, 48064, 48203, 48204, 48213, 48253, 48254, 48263, 48264, 8332, 8333, 8335, 8433, 8534, 8535, 8632, 8633

Warranty

1 Year Manufacturer Warranty
