100 hp 3600 RPM, 91 amps 575 Volts 60 Hz Three Phase Motor

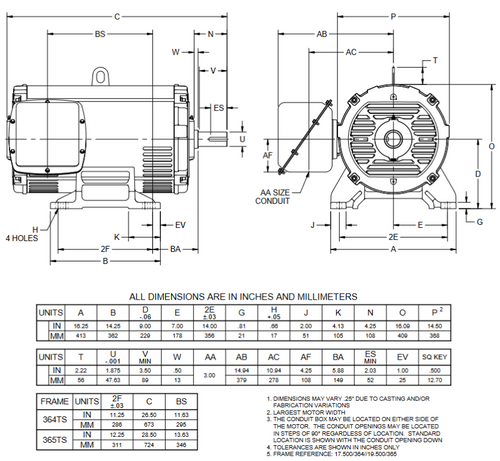

NEMA 365TS Cast Iron Frame, Keyed Shaft 1 7/8" Diameter x 4 1/4"
Service Factor: 1.15 Overload protection = None
C-Face Mount, Ball Bearings, Class F Insulation, Reversible
1 Year Manufacture Warranty
For fire pump applications per NFPA 20 where contaminants are minimal. Wiring diagram on motor name plate. ODP = Open Drip Proof. HH23
FF100E1GS Nidec 100 hp 3600 RPM 575V ODP 365TS (Rigid Base) 3-Phase Fire Pump Motor
- SKU:
- FF100E1GS
- Weight:
- 480.00 LBS
- Shipping:
- Calculated at Checkout
- ON SALE:
- LIMITED TIME DISCOUNT
Nidec
