- 1/2 hp 1200 RPM, 2.8/1.4 amps 230/460 Volts 60 Hz. Three Phase
- NEMA Rolled Steel 56 frame, Keyed Shaft 5/8" Diameter x 1 7/8"
- Service Factor: 1.25, Overload protection = None
- Rigid Base, Reversible, Ball Bearings, Class B Insulation
- 3 Year Manufacture Warranty

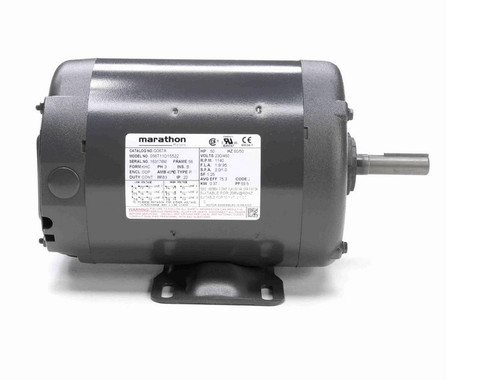

General purpose three phase electric motor, Shaft has keyway. Wiring diagram on motor name plate. ODP = Open Drip-Proof.
Marathon # 056T11D15522
Replaces Leeson C6T11DB22A, E110027.00
