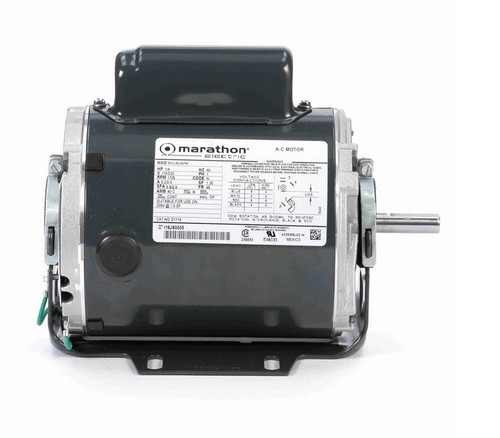

G1114 Marathon 1/4 hp (1 speed) 115/230V 1800 RPM ODP 48 Frame Cap Start Resilient Base Motor

G1114 Marathon 1/4 hp (1 speed) 115/230V 1800 RPM ODP 48 Frame Cap Start Resilient Base Motor

This Marathon 1/4 horsepower motor is designed for blower applications, providing reliable air movement in residential or commercial HVAC systems. It serves as a direct replacement for motors requiring a 48 frame, capacitor start, and resilient base mounting.

Key Specifications

• Horsepower: 1/4 hp
• RPM: 1800
• Voltage: 115/230 V, 60 Hz
• Amperage: 5.2/2.6 A
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 48 Frame
• Shaft Dimensions: 1 1/2" length x 1/2" diameter, keyed
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a capacitor start design and operates at a single speed, suitable for various blower installations. It includes a resilient base for stable mounting and is reversible to accommodate different shaft orientations, either vertical or horizontal. The motor is built with Class B insulation and does not include thermal protection.

Warranty

1 Year Manufacturer Warranty
