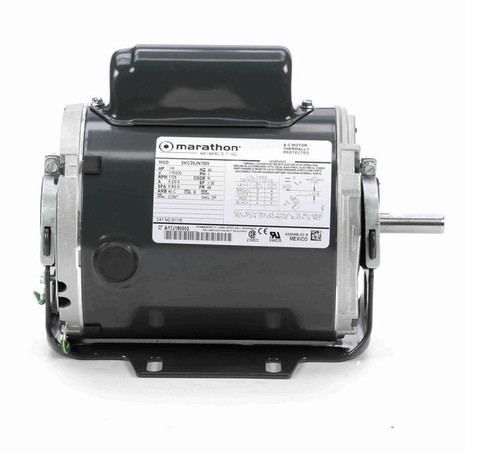

G1115 Marathon 1/4 hp (1 speed) 115/230V 1800 RPM ODP 48 Frame Cap Start Resilient Base Motor

G1115 Marathon 1/4 hp (1 speed) 115/230V 1800 RPM ODP 48 Frame Cap Start Resilient Base Motor

This Marathon 1/4 horsepower motor is a single-speed, capacitor start motor designed for blower applications in HVAC systems. It is suitable for replacing motors requiring a 48 frame, open drip proof (ODP) enclosure with a resilient base mount.

Key Specifications

• Horsepower: 1/4 hp
• RPM: 1800
• Voltage: 115/230 V
• Amperage: 5.2/2.6 A
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 48 Frame
• Shaft Dimensions: 1 1/2" length x 1/2" diameter, keyed shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a resilient base for stable mounting and includes thermal protection with automatic reset. It operates at 60 Hz and is designed for blower use, capable of shaft orientation in both vertical and horizontal positions. The capacitor start design ensures reliable starting torque for HVAC blower applications.

Warranty

1 Year Manufacturer Warranty
