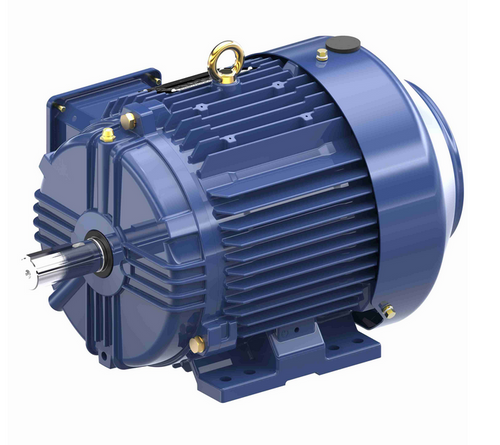

GT1105A Marathon 1.5 HP 1200 RPM 575V 182T Cast Iron Frame TEFC Motor
GT1105A Marathon 1.5 HP 1200 RPM 575V 182T Cast Iron Frame TEFC Motor
GT1105A Marathon 1.5 HP 1200 RPM 575V 182T Cast Iron Frame TEFC Motor
GT1105A Marathon 1.5 HP 1200 RPM 575V 182T Cast Iron Frame TEFC Motor
GT1105A Marathon 1.5 HP 1200 RPM 575V 182T Cast Iron Frame TEFC Motor
GT1105A Marathon 1.5 HP 1200 RPM 575V 182T Cast Iron Frame TEFC Motor
GT1105A Marathon 1.5 HP 1200 RPM 575V 182T Cast Iron Frame TEFC Motor
GT1105A Marathon 1.5 HP 1200 RPM 575V 182T Cast Iron Frame TEFC Motor

Marathon

GT1105A Marathon 1.5 HP 1200 RPM 575V 182T Cast Iron Frame TEFC Motor

(No reviews) Write a Review
$786.99
SKU GT1105A
UPC 7.23E+11
Shipping Calculated at Checkout
STATUS ON SALE
Voltage 575V
Horsepower 1-1/2 HP
RPM 1200
Phase Three Phase
Frame 182T
Enclosure TEFC
Hertz 60 Hz
Type Inverter Duty
Amperage 1.9 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Duty inverter duty
Adding to cart… The item has been added
Description
  • 1.5 hp 1200 RPM, 1.9 amps, 575 Volts, 60 Hz, Three Phase
  • NEMA 182T Frame Keyed Shaft 1 1/8" Diameter x 2 3/4"
  • Service Factor: 1.15 - Overload Protection = None
  • Reversible, Rigid Base Mount, Ball Bearings, Class F Insulation
  • 1 Year Manufacture Warranty

General purpose inverter duty motor (10:1 Constant Torque) which can be used for many applications requiring a 575 volt three phase electric motor. Hazardous Duty Division 2, Zone 2, Class I, Groups A,B,C,D, Temperature code T2B. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled. 182TTFCD6080

Can replace Leeson motor 132251

Specifications
STATUS ON SALE
Voltage 575V
Horsepower 1-1/2 HP
RPM 1200
Phase Three Phase
Frame 182T
Enclosure TEFC
Hertz 60 Hz
Type Inverter Duty
Amperage 1.9 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Duty inverter duty
!
