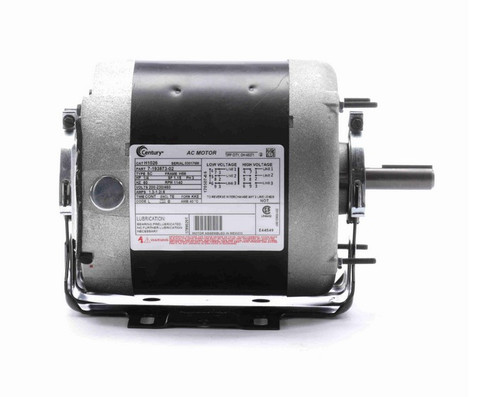

H1026 Century 1/4 hp (1 speed) 200-230/460V 1200 RPM TENV 56 Frame 3 Phase Resilient Base Motor

H1026 Century 1/4 hp (1 speed) 200-230/460V 1200 RPM TENV 56 Frame 3 Phase Resilient Base Motor

The H1026 is a 1/4 horsepower, single-speed industrial motor designed for blower applications in commercial and industrial settings. It is suitable for replacing existing motors with similar specifications, providing reliable performance in air-moving equipment.

Key Specifications

• Horsepower: 1/4 hp
• RPM: 1200
• Voltage: 200-230/460 V, 60 Hz
• Amperage: 1.3-1.2/0.6 A
• Enclosure: Totally Enclosed Non-Ventilated (TENV)
• Frame / Diameter: NEMA 56 Frame
• Shaft Dimensions: 1 7/8" length x 5/8" diameter, keyed shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a resilient base for stable mounting and is designed for three-phase power systems. It includes Class B insulation and does not have built-in thermal protection. The shaft orientation can be installed vertically or horizontally to accommodate various blower configurations.

Warranty

1 Year Manufacturer Warranty
