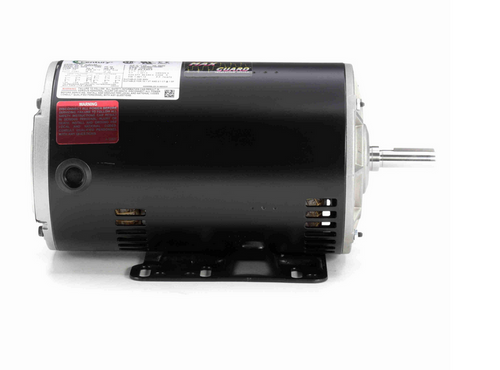

H181LES Century 2 hp 1800 RPM, 6.0/3.0 amps 230/460 Volts 50-60 Hz.

SKU:
H181LES
Weight:
46.00 LBS
Shipping:
Free Shipping
ON SALE:
DISCOUNTED PRICES AND FREE GROUND SHIPPING
Was: $465.50
Now: $394.50
Adding to cart… The item has been added
  • 2 hp 1800 RPM, 6.0/3.0 amps 230/460 Volts 50-60 Hz. Three Phase
  • NEMA 56 frame, Keyed Shaft 5/8" Diameter x 1 5/8"
  • Service Factor: 1.15, Overload protection = None
  • Rigid Base, Reversible, Ball Bearings, Class B Insulation
  • 1 Year Manufacture Warranty

General purpose motors are for use in situations not having special requirements. This is a three phase motor with a rigid base mount. Shaft has keyway. Wiring diagram on motor name plate. ODP = Open Drip Proof. H181LES
