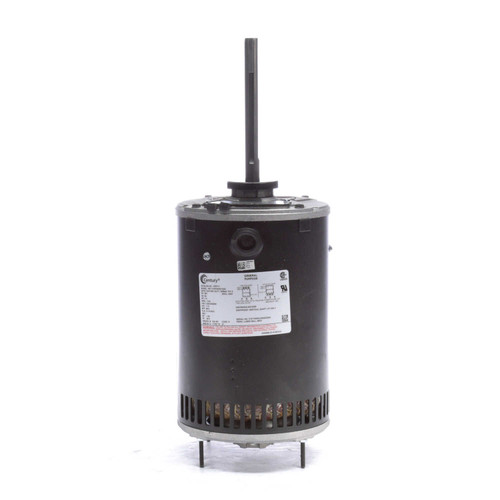

H767V1 Century Condenser Fan Motor 6 1/2" Dia, 1.5 hp, 1140 RPM 460/200-230V Three Phase

H767V1 Century Condenser Fan Motor 6 1/2" Dia, 1.5 hp, 1140 RPM 460/200-230V Three Phase

This Century condenser fan motor is designed for HVAC applications requiring reliable air movement. It serves as a suggested replacement for models 8-182759-01, 182759, H767, and Dayton 429J39, ensuring compatibility and performance in condenser fan assemblies.

Key Specifications

• Horsepower: 1.5 hp
• RPM: 1140
• Voltage: 460/200-230V Three Phase
• Amperage: 3.0/5.8-6.0 amps
• Enclosure: Open
• Frame / Diameter: 6 1/2" diameter, Motor case length 16.81"
• Shaft Dimensions: 5/8" diameter x 6" length
• Rotation: Air Over
• Bearings: Ball Bearings

Product Features & Fitment

The motor features a 1" end stud for secure mounting and an open shaft end design. Its air-over rotation and ball bearings provide efficient cooling and durability in condenser fan applications. This motor is engineered for straightforward replacement in compatible HVAC systems.

Cross Reference

• H767, Dayton 429J39

Warranty

1 Year Manufacturer Warranty
