H885L Century 1-1/2 hp 1800 RPM 3-Phase 56HZ Frame ODP (rigid base) 200-230/460V Century Motor # H885

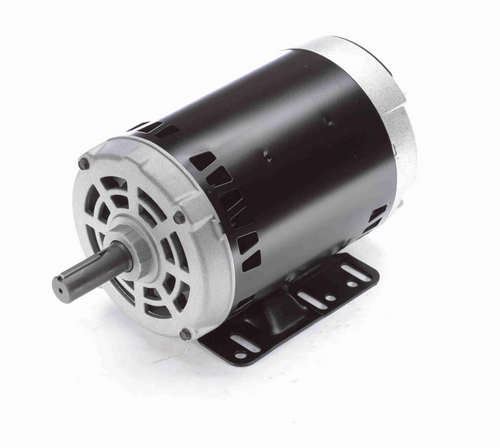

H885L Century 1-1/2 hp 1800 RPM 3-Phase 56HZ Frame ODP (Rigid Base) Motor

The H885L is a general-purpose 1-1/2 horsepower, 1800 RPM, three-phase electric motor designed for industrial applications requiring reliable performance. It features a rigid base mount and replaces Marathon model K064 and 056T17D3302.

Key Specifications

• Horsepower: 1-1/2 hp
• RPM: 1800
• Voltage: 208-230/460 V
• Amperage: 5.6-5.0/2.8 A
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 56HZ
• Shaft Dimensions: 7/8" diameter x 1-5/8" length, keyed
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor is equipped with a keyed shaft and a rigid base for secure mounting. It includes ball bearings and Class B insulation for durability and efficient operation. The wiring diagram is provided on the motor nameplate for straightforward installation. The motor also features an automatic overload protection system and a service factor of 1.15.

Cross Reference

• Marathon K064, 056T17D3302

Warranty

1 Year Manufacturer Warranty
