HB1/52 TECO-Westinghouse 1 1/2 hp 3600 RPM 143T 460V TEFC Severe Duty Petro-Chem 3-Ph Motor

SKU:
HB1/52
Weight:
58.00 LBS
Shipping:
Calculated at Checkout
$652.99
Adding to cart… The item has been added

TECO WESTINGHOUSE, NEMA PREMIUM ELECTRIC MOTOR

  • 1 1/2 hp 3600 RPM, 2.00 amps 460 Volts 60Hz. Three Phase

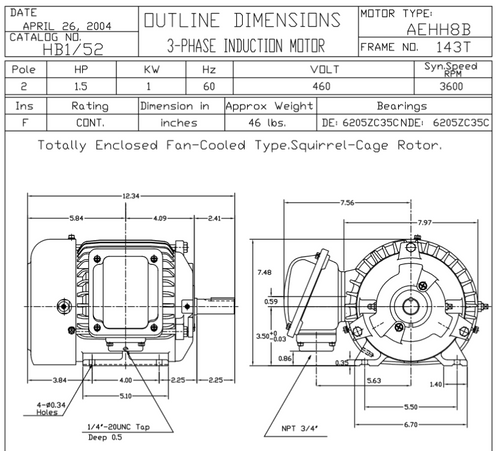

  • NEMA 143T Frame, 2 1/8 x 7/8" Dia. Keyed Shaft
  • Cast Iron Frame, Totally Enclosed Fan Cooled (IP56)
  • Service Factor: 1.15, Thermal Overload Protection: None
  • Rigid Base, Reversible, Ball Bearings, Class F Insulation
  • Suitable for Inverter Use per NEMA MG-1 Part 31.4.4.2
  • Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
  • Motors are U.L. Recognized, CSA Approved and CE Marked
  • 1 Year Manufacture Warranty

Part of the E2-E841 family of motors. For use in Severe Duty Petro-Chemical Applications Having Explosive Gases. Certified for Class 1, Division 2, Groups B,C,D
