HBV0752C TECO-Westinghouse 75 hp 3600 RPM 365TSC Vertical 460V TEFC Severe Duty Petro-Chem 3-Ph Motor

SKU:
HBV0752C
Weight:
1,015.00 LBS
Shipping:
Calculated at Checkout
$8,051.73
Adding to cart… The item has been added

TECO WESTINGHOUSE, NEMA PREMIUM ELECTRIC MOTOR

  • 75 hp 3600 RPM, 79.9 amps 460 Volts 60 Hz. Three Phase

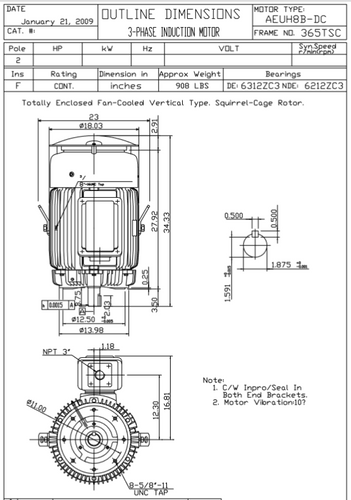

  • NEMA 365TSC Frame, 3 1/2 x 1 7/8" Dia. Keyed Shaft
  • Cast Iron Frame, Totally Enclosed Fan Cooled (IP54)
  • Service Factor: 1.15, Thermal Overload Protection: None
  • No Base, Reversible, Ball Bearings, Class F Insulation
  • Suitable for Inverter Use per NEMA MG-1 Part 31.4.4.2
  • Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
  • Motors are U.L. Recognized, CSA Approved and CE Marked
  • 1 Year Manufacture Warranty

For use in Severe Duty Petro-Chemical Applications Having Explosive Gases. Certified for Class 1, Division 2, Groups B,C,D
