- 100 HP 1800 RPM, 113 amps, 460V 60 Hz. 3 Phase

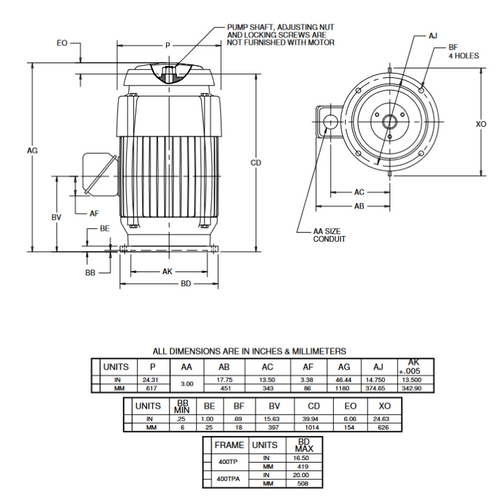

- NEMA 405TP Frame, TUS type, 16 1/2" Dia. Base, TEFC
- 1.15 Service Factor, Class F insulation, Thermal Protection: None
- Non-Reversible Ratchet Rotation, Weather Protected Enclosure
- P-Base Mounting, Ball Bearings, High Thrust
Vertical pump motor for use on turbine, mix flow, and propeller pumps. TEFC = Totally-Enclosed Fan-Cooled, 1 Year Manufacture Warranty. FL97
