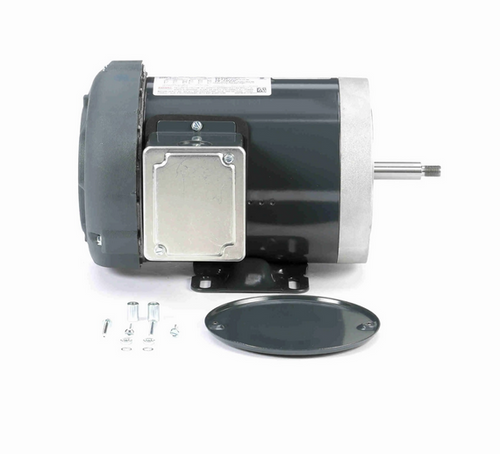

J062 Marathon 3/4 hp 3-Phase Jet Pump Motor 3600 RPM 208-230/460V TEFC 56J Frame (rigid base)

SKU:: J062
UPC:
Weight:: 26.00 LBS
Width:: 9.00 (in)
Height:: 11.00 (in)
Depth:: 17.00 (in)
Shipping:: Free Shipping
ON SALE:: DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage:: 208/230/460V
Horsepower:: 3/4 HP
RPM:: 3600
Phase:: Three Phase
Frame:: 56J
Enclosure:: TEFC
Hertz:: 60 Hz
Amperage:: 3.2/1.6 Amps
Bearings:: Ball Bearings
Service Factor:: 1.15
Insulation Class:: Class B
Rotation:: Reversible
Mounting:: Rigid Base

Current Stock:

Was: $480.13

Now: $419.41

Quantity:

Adding to cart… The item has been added

Description
Literature
Compliance & Restrictions

J062 Marathon 3/4 hp 3-Phase Jet Pump Motor 3600 RPM 208-230/460V TEFC 56J Frame (rigid base)

This Marathon 3/4 horsepower jet pump motor is designed for spa pump applications and is not suitable for pool use due to the absence of suction cut-off. It replaces Marathon models KG232 and 5K36MN339, as well as Leeson models C6T34FK34E and 113028.00.

Key Specifications

Horsepower: 3/4 hp
RPM: 3600
Voltage: 208-230/460 V
Amperage: 3.0-3.2/1.6 A
Enclosure: Totally Enclosed Fan-Cooled (TEFC)
Frame / Diameter: NEMA 56J Frame, 5-5/8" diameter
Shaft Dimensions: 1-5/8" long threaded stainless steel shaft
Rotation: Reversible
Bearings: Ball Bearings

Product Features & Fitment

The motor features a rigid base for stable mounting and includes Class B insulation suitable for continuous operation at 60 Hz. It has a service factor of 1.15 but does not include overload protection. The stainless steel shaft and TEFC enclosure provide durability in spa environments.
