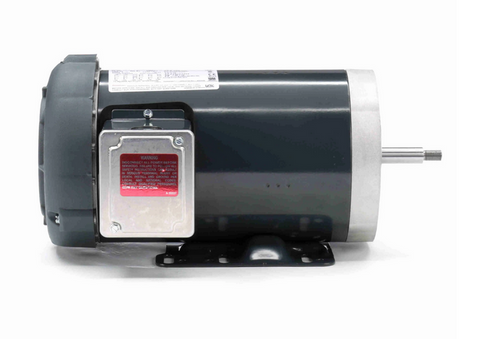

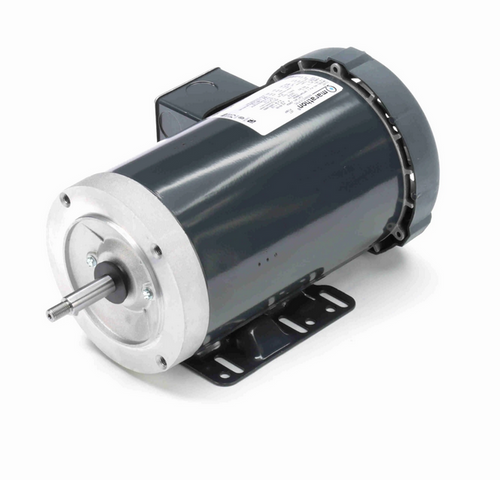

J065A Marathon 2 hp 3-Phase Jet Pump Motor 3600 RPM 230/460V TEFC 56J Frame (rigid base)

J065A Marathon 2 hp 3-Phase Jet Pump Motor 3600 RPM 230/460V TEFC 56J Frame (Rigid Base)

The J065A Marathon motor is a 2 horsepower, 3-phase jet pump motor designed for spa pump applications. It replaces Leeson models C6T34FK135B, 119454.00, and 113031.00, providing reliable performance with a totally enclosed fan-cooled (TEFC) design.

Key Specifications

• Horsepower: 2 hp
• RPM: 3600
• Voltage: 230/460 V
• Amperage: 5.0/2.5 A
• Enclosure: TEFC (Totally Enclosed Fan-Cooled)

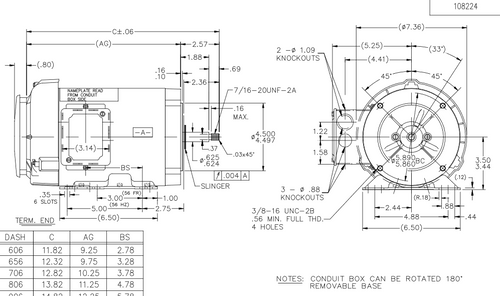

• Frame / Diameter: NEMA 56J Frame, 5-8" diameter
• Shaft Dimensions: 1-5/8" long threaded stainless steel shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base for stable mounting and is built with Class B insulation for durability. It operates at 60 Hz and includes a service factor of 1.15 but does not have overload protection. Note that this motor is intended for spa pump use only and is not suitable for pool applications due to the absence of suction cut-off protection.

Cross Reference

• Leeson C6T34FK135B, 119454.00, 113031.00

Warranty

1 Year Manufacturer Warranty
