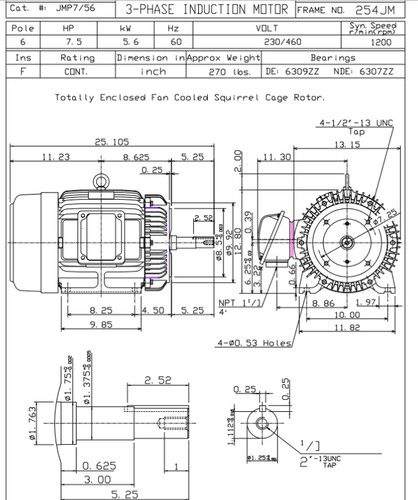

JMP7/56 TECO Westinghouse 7 1/2 hp 1200 RPM 254JM Cast Iron 230/460V TEFC Close-Coupled 3-Phase Motor

SKU:
JMP7/56
Weight:
186.00 LBS
Shipping:
Calculated at Checkout
$1,239.69
Adding to cart… The item has been added

TECO WESTINGHOUSE, NEMA PREMIUM ELECTRIC MOTOR

  • 7 1/2 hp 1200 RPM, 18.2/9.1 amps 230/460 Volts 60Hz. Three Phase
  • NEMA 254JM Frame, Special Shaft
  • Cast Iron Frame, Enclosure: Totally Enclosed Fan Cooled (IP54)
  • Service Factor: 1.15, Thermal Overload Protection: None
  • Rigid Base, Reversible, Ball Bearings, Class F Insulation
  • Suitable for Inverter Use per NEMA MG-1 Part 31.4.4.2
  • Inverter Duty Speed Range: 10:1 Variable Torque, 5:1 Constant Torque
  • Motors are U.L. Recognized, CSA Approved and CE Marked
  • 1 Year Manufacture Warranty

Applications: Fans & Blowers, Pumps, Crushers, Compressors, Mixers, Conveyors
